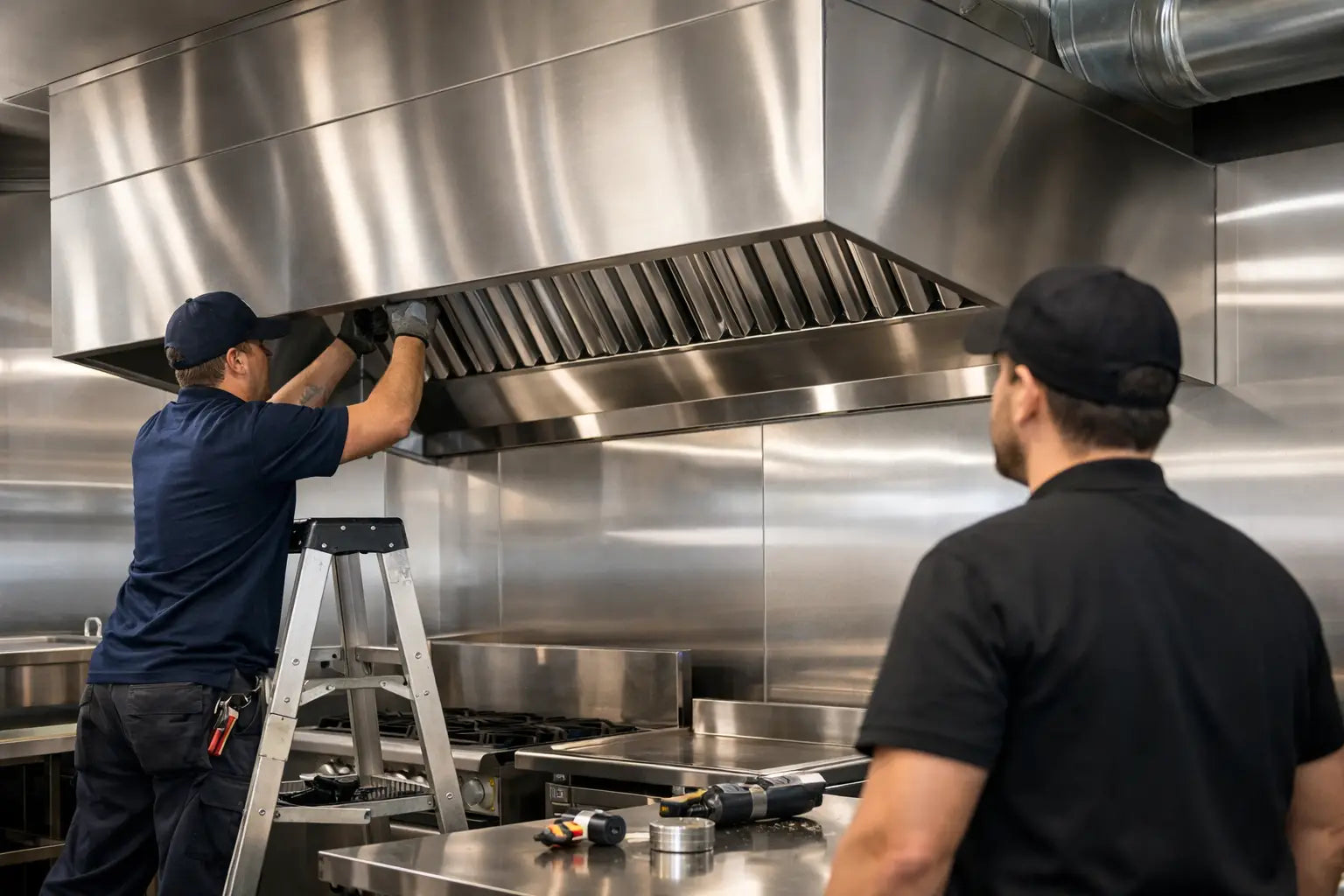

A rushed fit-out can hide problems that only show up once the kitchen is live - poor capture, noisy extraction, grease build-up and awkward maintenance access. A proper commercial kitchen hood installation guide helps you avoid those expensive corrections early, when layout decisions, duct routes and equipment choices are still under your control.
For restaurant owners, facilities managers and contractors, hood installation is not just a case of hanging stainless steel over the cookline. The canopy has to match the cooking load, work with the building constraints and support safe, compliant extraction. Get those basics right and the kitchen runs cleaner, cooler and more efficiently. Get them wrong and you end up paying twice.
What a commercial kitchen hood installation guide should cover
The best starting point is not the hood itself. It is the cooking process below it. A light-duty line producing soups and boiling stock places very different demands on extraction than a busy fry line or chargrill section. Heat, grease and smoke levels all change the type of canopy, filtration and fan performance required.
That is why a good specification begins with the menu, appliance schedule and operating pattern. A kitchen running short peak periods may need a different approach from one producing high-volume service all day. There is no single airflow figure that suits every site. The right solution depends on the duty level, the arrangement of equipment and the route available for discharge.
In practical terms, installation planning should tie together canopy size, grease filtration, ductwork, access for cleaning, fan selection, make-up air and final commissioning. If one part is weak, the rest of the system suffers.
Start with the canopy size and position
A canopy should capture contaminated air before it spreads into the room. That means it needs to cover the active cooking area properly, with enough overhang and the correct mounting height. If the hood is too small or set too high, heat and grease-laden vapour can roll out into the kitchen, even if the fan is powerful.
Wall-mounted canopies are often the most efficient arrangement where the cookline sits against a wall, because they help contain the extract zone. Island canopies can work well in open kitchen layouts or larger production spaces, but they usually demand more careful airflow design because there is no wall to help control the plume.
Ceiling height matters as well. In low spaces, you may have less room for comfortable working clearance and duct connections. In higher spaces, the temptation is to lift the canopy too far above the equipment. That usually reduces capture performance. The correct installation height depends on the equipment mix and site layout, but the principle stays the same - keep the hood low enough to capture effectively while preserving safe, practical working space.
Ductwork design is where many projects go wrong
A hood can only perform as well as the duct system connected to it. Long runs, excessive bends and undersized ductwork all increase resistance. The fan then has to work harder, and the actual extraction rate at the canopy can fall short of what the kitchen needs.
Straight, well-planned duct routes are always preferable. They reduce pressure loss, improve energy efficiency and make grease management easier. Where bends are unavoidable, they should be designed sensibly rather than forced around the building as an afterthought. Too many site projects treat ducting as whatever can be squeezed through the leftover void. That approach almost always creates performance or maintenance problems later.
Material choice matters too. In commercial kitchens, grease extraction ductwork needs to be durable, cleanable and correctly fabricated. Access panels should be placed where cleaning teams can actually reach critical sections. If the route is difficult to clean, it often will not be cleaned properly, and that carries obvious hygiene and fire risks.
Discharge position also deserves attention early. Extraction air needs to leave the building in a way that manages odour, avoids nuisance and aligns with local requirements. This can influence fan placement, external duct runs and terminal design. It is far better to resolve that at design stage than after equipment has already been installed.
Airflow is not only about extraction
One of the most common installation issues is focusing entirely on air being pulled out, while ignoring the air that needs to come back in. Every commercial kitchen needs balanced replacement air. Without it, the space can fall under heavy negative pressure, making doors hard to open, affecting gas appliance performance and causing draughts from the wrong places.
A well-designed system considers both extract and make-up air together. Fresh air should support staff comfort and combustion safety without disrupting the canopy capture zone. If supply air is dumped in the wrong place or at the wrong velocity, it can push smoke and vapour out from under the hood. The result looks like a weak extraction system, even when the fan itself is adequate.
This is where experience makes a real difference. Air movement in a working kitchen is affected by door openings, pass windows, general ventilation and heat loads from appliances and people. There is a practical balance to strike between comfort, capture efficiency and energy use.
Filtration, fire risk and access for maintenance
Grease filtration is not optional detail. It is central to keeping the system clean, protecting the ductwork and supporting fire safety. The right baffle filters or specialist filtration stages should match the cooking duty. Heavy grease applications may also justify additional treatment, such as electrostatic filtration, depending on the site and discharge requirements.
Installation should allow filters to be removed and cleaned easily. If staff struggle to access them, maintenance standards tend to slip. The same applies to grease collection arrangements and duct cleaning access. A tidy drawing on paper means very little if nobody can safely remove a filter bank or reach the access hatch once the kitchen is fitted out.
Spacing around the canopy matters here. So does coordination with lights, wall cladding, service trays and ceiling details. A strong installation is one that still works well after six months of real use, not just on handover day.
Compliance needs to be built in, not bolted on later
Any commercial kitchen hood installation guide worth using has to address compliance from the start. In the UK, that includes fire considerations, ventilation performance, hygiene standards and the practical expectations of building control and environmental health.
The exact requirements vary by project. A small café, a school kitchen and a heavy-duty production facility will not always face the same demands. That said, the principle is straightforward - the extraction system should be designed, manufactured and installed to suit the risk level and operating environment, with proper documentation and commissioning to support handover.
This is another area where shortcuts cost money. Retrofitting access panels, changing discharge points or resizing fans after inspection is far more disruptive than getting the specification right before fabrication starts.
Installation sequencing affects cost and finish quality
Commercial kitchen extraction does not sit in isolation. It competes for space with gas, electrics, fire suppression, ceilings, lighting and catering equipment delivery. If installation sequencing is poor, you end up with delays, rework and a finish that looks compromised.
The canopy should be coordinated with the wider fit-out programme. Fixing points, duct penetrations, fan bases and roof works need to be agreed early. Measurements should be checked against the real site conditions, not only against architect drawings. On refurbishment projects especially, existing structures often differ from what is shown on paper.
Custom fabrication is often the best route where standard sizes do not suit the room or equipment line-up. A bespoke stainless steel canopy can solve awkward dimensions, improve capture and create a cleaner final fit. That is often better value than forcing an off-the-shelf unit into a space it was never designed for.
Common mistakes to avoid in a commercial kitchen hood installation guide
Most failures come from a small set of predictable mistakes. The hood is undersized for the appliance duty. The duct route is too restrictive. Replacement air is ignored. Cleaning access is poor. Or the whole system is specified before the kitchen equipment list is properly confirmed.
There is also a tendency to compare quotes on canopy price alone. That can be misleading. A cheaper hood can become the most expensive option if it leads to site modifications, poor extraction or an early replacement. Buyers should be looking at the full system - manufacture quality, airflow performance, installation practicality and after-sales support.
For contractors, coordination is the real pressure point. For operators, day-to-day performance matters more. A good supplier understands both sides and designs accordingly.
Choosing the right installation partner
The right partner should be able to do more than supply a stainless steel canopy. They should understand airflow, fabrication tolerances, duct layout, fan selection and site installation realities. They should also be comfortable adapting the system to suit your kitchen rather than forcing your kitchen to suit a standard product.
That matters even more on constrained sites, refurbishment projects and high-output kitchens. A fully custom approach can prevent the usual compromises around head height, service clashes and poor extract routing. For many buyers, working with a manufacturer-installer reduces friction because design, fabrication and fit-out are handled as one joined-up process.
CanopyMan works in exactly that practical, end-to-end way - building premium-quality extraction systems around real site conditions rather than idealised drawings.
A commercial kitchen hood installation is one of those jobs where good planning stays invisible and bad planning affects every service. If you treat it as part of the kitchen’s working infrastructure, not just a metal box overhead, you give the whole operation a better chance to run cleanly, safely and without avoidable downtime.
