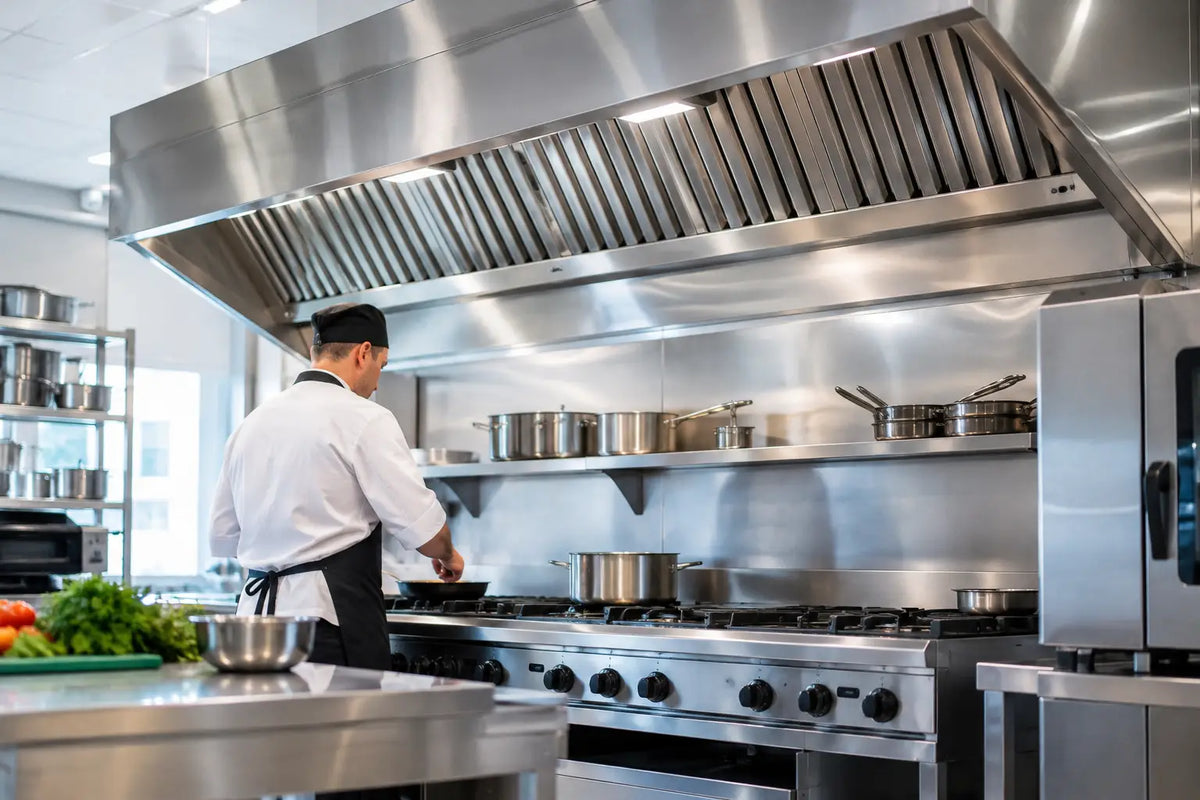

A canopy can look substantial, be made from stainless steel and still fall short where it matters: capturing cooking fumes at the appliance, allowing safe cleaning, and connecting to ductwork that can be maintained. This DW172 canopy compliance guide sets out the practical points commercial kitchen operators, installers and contractors should establish before a canopy is fabricated or fitted.
DW172 is the industry specification commonly used for commercial kitchen ventilation systems. It is not simply a rule for canopy dimensions. It covers the ventilation system as a working whole, including canopy layout, extract and replacement air, ductwork, filtration, fire considerations and access for cleaning. Treating the canopy as an isolated stainless steel item is one of the quickest ways to create expensive alterations later.
Start with the cooking line, not the canopy size
A compliant design begins with the appliances beneath the canopy. A heavy-duty gas chargrill, solid-fuel appliance or wok range produces a different heat and grease load from a light-duty electric oven. The canopy must be selected around the duty of the cooking equipment, its position, and the way the kitchen operates at peak service.
The canopy should overhang the cooking appliances sufficiently to contain the rising thermal plume and draw it towards the filters. Exact overhang requirements depend on the arrangement, appliance duty and whether the canopy is wall-mounted or island-mounted. A canopy that is too shallow may allow fumes to spill into the kitchen even where the extract fan is running correctly.
Height matters as well. Mounting a canopy too high reduces its ability to capture heat, steam and grease-laden air. Mounting it too low can obstruct chefs, compromise access to equipment or conflict with manufacturer clearances. This is why the final fabrication drawing should be based on confirmed appliance dimensions and finished floor levels, not an early kitchen sketch.
What DW172 canopy compliance requires in practice
The phrase “DW172 compliant canopy” is often used loosely. In practice, compliance depends on the full installation and how it is designed, installed, commissioned and maintained. A well-made canopy is an essential starting point, but it cannot make an unsuitable extract route or undersized fan compliant by itself.
For a practical specification, establish these points before ordering:
- the type, quantity and duty classification of every cooking appliance;
- whether the canopy is wall-mounted, single-island or double-island;
- the canopy length, depth, height and required overhangs;
- the extract route, discharge position and available space for duct access;
- the method and location of replacement air;
- filter type, lighting, controls and fire-suppression requirements where applicable.
Canopy construction and material choice
Commercial extraction canopies need to tolerate heat, moisture, grease and frequent cleaning. Stainless steel is the normal choice, but grade and thickness should be specified honestly rather than assumed.
For standard commercial applications, 430-grade stainless steel at 0.7 mm can provide a practical and economical canopy construction. It is commonly suitable where the canopy is properly cleaned and the operating environment is not unusually aggressive. Where corrosion resistance is a greater concern, 304-grade stainless steel is the more appropriate made-to-order option. It is particularly worth considering in demanding kitchen environments, locations with persistent moisture, or where the buyer has a specific project specification.
Thicker material may also be requested for larger fabrications or a particular site requirement, but it increases material cost and handling weight. The right choice depends on the job. A clear written specification should identify the stainless grade, sheet thickness, weld finish, filter arrangement and any bespoke features before manufacture starts.
At CanopyMan, canopies are fabricated in Birmingham using laser welding with 316-grade filler wire and formed on a 100-tonne press brake. That manufacturing control matters when a project requires non-standard lengths, depths, service apertures or material grades rather than an off-the-shelf format.
Filters are part of grease control, not an optional extra
Grease filters are a primary line of defence. Their purpose is to remove a proportion of airborne grease before it enters the ductwork, reducing grease build-up and helping protect downstream equipment. They do not remove the need for duct cleaning, nor do they compensate for poor canopy capture.
Baffle filters are commonly specified in commercial kitchen canopies because they are designed to handle grease-laden extract air and can be removed for cleaning. Filters must fit securely within the canopy, be readily removable and be cleaned at a frequency that reflects the actual cooking duty. A busy frying operation requires more attention than a low-volume reheating kitchen.
Do not assume that a canopy fitted with filters can connect to any existing duct. The duct system still needs to be suitable for kitchen extract, adequately sealed, correctly supported and designed with inspection and cleaning access in mind.
Ductwork, access doors and the DW172 system approach
Kitchen extract ductwork carries the contamination that filters do not capture. It therefore needs a more considered approach than general ventilation ducting. DW144 is widely used as the standard for sheet metal ductwork manufacture, while DW172 addresses kitchen ventilation requirements and the operational risks associated with grease extract.
The duct route should be kept as direct and accessible as the building allows. Long runs, unnecessary changes of direction and inaccessible sections all make cleaning and maintenance more difficult. In reality, some projects have unavoidable constraints, especially in existing buildings. Where that is the case, the system needs to be planned around access rather than leaving cleaning provisions as an afterthought.
Access doors should be installed at suitable intervals and near changes in direction so cleaning contractors can reach internal surfaces. They should be properly sealed and remain accessible after ceilings, boxing or other services are installed. A neatly finished ceiling that conceals the only practical cleaning route creates a problem for the operator, not just the installer.
Duct joints must be appropriately sealed to reduce grease leakage. The extract path should also be considered alongside fire compartmentation and any required fire-rated duct solution. The correct arrangement depends on the building layout, the duct route and the project fire strategy. This is an area where a specialist designer and the relevant building-control or fire-safety parties should be involved early.
Replacement air cannot be ignored
Extracting air from a kitchen without replacing it creates negative pressure. Doors become difficult to open, fumes may escape from the canopy, and the kitchen can become uncomfortable for staff. Gas appliances may also be affected if the room does not have adequate combustion air.
Replacement air should be planned as part of the ventilation design, not left to incidental gaps around doors and windows. It should enter in a way that supports canopy capture without creating a draught across the cooking line. A poorly positioned supply grille can push the cooking plume away from the canopy, reducing performance despite a correctly sized extract system.
There is a trade-off between comfort, available building space and the level of control required. Tempered replacement air can improve conditions, but it adds equipment, installation cost and ongoing energy demand. The appropriate solution depends on the cooking duty, kitchen layout, occupancy and operating hours.
Commissioning and maintenance protect the original design
A canopy installation should be commissioned once complete. This confirms that the system operates as intended and gives the operator a benchmark for future checks. If capture is poor from day one, waiting until the kitchen is trading makes diagnosis more disruptive and more costly.
Maintenance is equally important. Filters need routine cleaning, fans and controls need inspection, and ductwork needs cleaning at intervals appropriate to the amount of grease produced. The cleaning frequency should be based on the kitchen’s risk level and operating pattern, with records retained for insurers, landlords and enforcement authorities where required.
Kitchen layouts change over time. Adding a fryer, moving a griddle or replacing an appliance with a higher-duty unit can alter the extraction requirement significantly. Before changing the cooking line, review whether the existing canopy, fan, ductwork and replacement-air provision remain suitable.
A better way to specify a DW172 canopy
The most reliable route is to gather the appliance schedule, kitchen plan, ceiling height, extract route and discharge constraints before fabrication begins. Confirm the canopy dimensions against the installed equipment, then consider material grade, filter configuration, lighting and any bespoke stainless steel features required on site. This avoids guessing at details that cannot be corrected cheaply once the canopy is hung.
A DW172-led approach is not about buying the most complicated canopy. It is about making sure the canopy, fan, ductwork, air supply and cleaning access work together for the cooking operation you actually run. Get those foundations right at the design stage, and the finished kitchen is far easier to operate, clean and maintain.
