Welding haze hanging beneath roof lights, a solvent smell that lingers after a job, or dust settling back onto finished work are not minor workshop annoyances. They are signs that air is not being controlled where the work happens. Knowing how to improve workshop airflow means looking beyond opening a roller shutter and fitting the right combination of source extraction, replacement air and sensible system design.
A working workshop needs more than movement of air. It needs clean air delivered to the right areas, contaminated air captured before it spreads, and a route out of the building that does not create new problems for staff, neighbours or production. Get that balance right and the result is a safer, more comfortable and more productive operation.
Start with the contaminant, not the fan
The correct airflow solution depends on what is being released into the workshop. Welding and grinding create fine metal fume and dust. Woodworking produces high volumes of chips and airborne dust. Vehicle, fabrication and finishing bays may generate exhaust gases, oil mist, paint overspray or solvent vapours. Heat from machinery can add another layer of discomfort, but heat removal alone is not a substitute for contaminant control.
Begin by identifying the process, the materials used, how often the work takes place and where operators stand. A bench-based task can often be controlled with a close-fitting extraction hood or downdraught arrangement. A large fabrication bay may need moveable extraction arms, high-level extraction and carefully planned fresh-air supply. The closer extraction sits to the point of release, the less total air volume is usually needed to achieve an effective result.
This is why a large wall fan is rarely the complete answer. It may dilute pollution, but it can also push fume through the breathing zone before it leaves the building. Local exhaust ventilation captures the contaminant at source, which is normally the safer and more efficient approach.
How to improve workshop airflow with a balanced system
Extraction only works properly when the removed air is replaced. If a fan pulls large volumes from a sealed or poorly supplied workshop, negative pressure develops. Doors become difficult to open, extraction performance can fall, and cold air may be dragged in through every available gap. In some cases, combustion appliances can also be affected.
A balanced design provides controlled make-up air. This may be introduced through wall louvres, roof-mounted supply units, ducted air handling equipment or strategically placed grilles. The aim is to bring replacement air into cleaner areas and allow it to travel towards the contaminant source and extraction point.
For example, in a welding area, fresh air should not blow directly across the weld and force fume towards the operator. It should support the capture pattern of the extraction arm or canopy. In a dusty machining workshop, supply air needs to avoid disturbing settled dust or creating turbulent cross-draughts that defeat local extraction.
The right arrangement depends on the building, process and season. Natural ventilation through openings can assist in mild weather, but it is variable and difficult to rely on for regular exposure control. Mechanical supply and extract gives greater consistency, particularly in busy UK workshops where closed doors are common during colder months.
Put extraction where the work is done
Airflow performance is often lost through poor positioning rather than insufficient fan capacity. Extraction equipment must be close enough to capture fume, dust or vapour before it disperses. Once contamination has reached the general workshop air, it becomes far harder and more expensive to remove.
Match the extraction point to the task

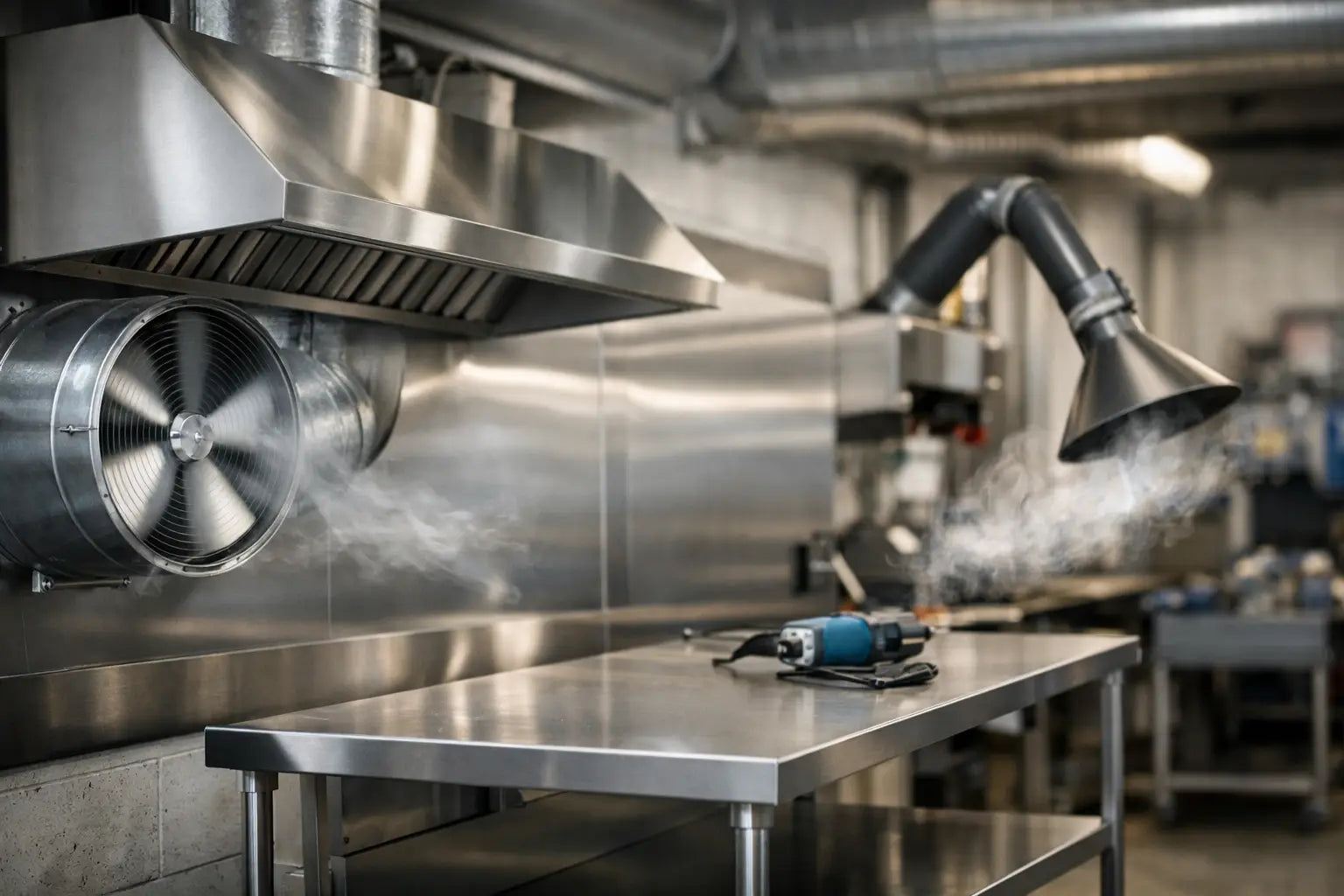

A fixed bench can use a rear extraction slot, enclosed workstation or purpose-built capture canopy. Welding stations benefit from flexible arms that can be positioned near the plume, provided operators are trained to move them as the job changes. Grinding and cutting equipment may need integrated guards and extraction connections designed for the machine.
For wider work zones, overhead extraction can be useful, particularly where heat and lighter airborne contaminants rise. However, high-level extraction should complement local capture rather than replace it where workers are close to the source. The higher the contaminant travels before capture, the greater the risk of exposure across the workshop.
A bespoke stainless steel canopy or fabrication-built hood can be particularly effective where standard sizes do not fit the machinery, bench layout or duct route. Correct dimensions, capture face, duct connection and mounting height all affect results. A system that fits the site properly will outperform a nominally larger unit installed as an afterthought.
Size ductwork and fans for real resistance
A fan label alone does not tell you whether a system will perform. The fan must overcome resistance from duct length, bends, branches, filters, grilles and discharge points while still delivering the required airflow at each extraction point.
Undersized ductwork creates excessive resistance, noise and poor pickup. Oversized ductwork can allow heavier dust to settle if transport velocity is too low. Sharp bends, unnecessary flexible ducting and poorly planned branch connections all reduce efficiency. A short, direct duct run with appropriately sized steel ductwork is usually easier to maintain and performs more predictably.
Fan selection should also consider the material being extracted. Fine dust, welding fume, oil mist and corrosive vapours place different demands on impellers, filtration and construction materials. If filters are added without allowing for their pressure drop, airflow will deteriorate as they load. The design must account for clean and operating conditions, not just the day the system is commissioned.
Separate clean and dirty zones
Workshop layout has a direct effect on air quality. Position higher-emission work, such as grinding, welding, spraying or chemical cleaning, away from assembly, inspection and packing areas wherever practical. This protects finished products as well as people.
Create a logical airflow path from cleaner zones towards dirtier zones, then to extraction. Avoid placing fresh-air inlets beside extraction discharge points, loading bays, vehicle routes or other sources of contaminated air. Recirculating contaminated exhaust back into the building without suitable filtration and assessment can create a serious exposure risk.
Storage also matters. Stacks of material, partitions and large machinery can block supply air or form stagnant pockets where dust and vapours collect. Walk the workshop while processes are running. Look for visible haze, drifting smoke during a controlled test, heat build-up, dust deposits and odours. These practical observations often reveal weaknesses that drawings do not show.
Maintain the system as part of production
A well-designed system will still fail if it is not maintained. Filters load up, extraction arms get knocked out of position, dampers are altered, belts wear and ductwork can collect dust. Operators may also stop using equipment if it is noisy, awkward or obviously ineffective.
Set clear checks for capture points, fan operation, filter condition, airflow indication and visible damage. Keep extraction hoods and grilles clear of stored materials. Where local exhaust ventilation is used to control substances hazardous to health, it requires regular thorough examination and testing by a competent person, alongside routine maintenance between inspections.
Record findings and act on them. A falling airflow reading, increased noise or recurring dust on surfaces should trigger investigation before it becomes a health, quality or downtime issue. Maintenance is not an add-on cost. It protects the performance you paid to install.
Do not overlook energy use and comfort
High airflow rates can increase heating costs, especially when large volumes of warm workshop air are discharged in winter. The answer is not to reduce extraction below what the process needs. Instead, improve control and design.
Variable-speed fans can reduce energy use when fewer stations are operating. Zone controls prevent one area from extracting at full duty when it is idle. Heat recovery may be suitable in selected applications, although it must never compromise safe separation between dirty exhaust and incoming air. Good insulation, controlled make-up air and sensible operating schedules also reduce the burden on heating systems.
Noise deserves attention too. Excessive duct velocity, poor fan selection and vibration can make a system unpopular with staff. Acoustic treatment, vibration isolation and correct duct sizing can improve comfort without sacrificing extraction performance.
Bring the design together before installation
The most reliable way to improve workshop airflow is to treat it as an engineered system, not a collection of fans. Survey the building, map the processes, calculate extraction needs, plan make-up air, keep duct routes efficient and allow access for maintenance. Then commission the installation and verify that each capture point is doing its job.
For straightforward upgrades, this may mean relocating extraction arms, removing restrictive duct bends and adding controlled air inlets. For a new facility or high-output operation, a custom-designed extraction package is usually the better long-term investment. CanopyMan can manufacture and install premium-quality, fully customised extraction and ventilation equipment around the way your workshop actually operates.
Clean workshop air is built into the job long before the fan is switched on. When the system is designed around the process and maintained with the same discipline as production equipment, it will protect people, support quality work and keep the workshop moving.
