An axial fan can look like a simple component, but its installation determines whether it delivers useful extraction or becomes a source of noise, vibration and repeat call-outs. Knowing how to install an axial fan properly starts before the first fixing is drilled. The fan must suit the air volume, duct route, mounting surface and electrical supply at the site.
For commercial kitchens, workshops, plant rooms and production areas, installation is not a case of placing the largest fan available in an opening. Correct selection and careful fitting protect airflow performance, reduce energy waste and help maintain a safer working environment.
Start with the duty, not the fan size
Before ordering or installing anything, establish what the fan needs to do. Is it extracting heat, fumes, steam, odours, dust or general stale air? The answer affects the required airflow rate, fan construction, motor protection and the rest of the ventilation system.
Measure the area being ventilated and assess the equipment or process creating the load. A small wall-mounted fan may be suitable for general air changes in a workshop, while a commercial cooking line or manufacturing process may need a designed extraction system with purpose-built ductwork, filtration and make-up air.
The duct run matters just as much as the room volume. Every bend, grille, louvre, filter and length of duct creates resistance. If the fan is selected only on its free-air airflow figure, it may move far less air once connected to the actual system. Check the fan curve against the system resistance, particularly where there are long routes or multiple branches.
Also confirm the intended direction of airflow. Axial fans are designed to move air in one direction, and the arrow on the casing or motor assembly should match the required extraction route. Reversing a standard fan is not a substitute for selecting the right unit.
Check the installation point
A solid, accessible mounting point makes the work safer and the fan more reliable. Wall, panel, window and duct-mounted axial fans each need an appropriate fixing method. The surface must carry the weight of the unit and resist the vibration created during operation.
Where a fan is fitted through an external wall, allow for the wall sleeve, weather louvre and any backdraught shutter. The aperture should be correctly sized and finished cleanly so the fan frame sits flat. Gaps around a poorly cut opening allow air leakage, water ingress and unwanted vibration.
For duct-mounted installations, support the duct independently. Do not leave heavy ductwork hanging from the fan casing. This can distort the unit, strain connections and transfer vibration through the building. Flexible connectors on either side of the fan can help isolate movement, but they must be installed without crushing or restricting the airflow path.
Position the fan where maintenance can be carried out without unsafe access. Motors, guards, shutters and isolators need to remain reachable. In a commercial setting, saving a few minutes during installation is not worth making future cleaning or servicing difficult.
Isolate electrical services before fitting
Electrical work must be carried out by a competent person and, where required, in line with current UK wiring regulations. Isolate the supply at the correct point, lock it off where site procedures require, and prove the circuit is dead before touching any conductors.
Check the fan data plate against the supply available on site. Voltage, phase, frequency, current draw and speed-control compatibility must all match. A single-phase fan connected incorrectly, or a three-phase fan supplied with the wrong voltage, can fail immediately or operate outside its design conditions.
Provide a local means of isolation so the fan can be safely serviced. In many commercial and industrial installations, a suitable lockable isolator placed close to the equipment is the practical choice. Consider the control arrangement at the same time. The fan may operate from a local switch, timer, sensor, building management system or interlock with process equipment.
How to install an axial fan step by step
Once the design, location and electrical requirements are confirmed, the physical installation can begin. The exact sequence varies by fan type, but the principles remain consistent.
First, unpack and inspect the fan. Check for transport damage, loose fixings, a bent impeller or missing guards. Turn the impeller by hand with the power isolated. It should rotate freely without rubbing against the casing.
Mark out the opening or mounting holes using the manufacturer’s template or fan flange as a guide. Verify dimensions twice before cutting, particularly on stainless steel panels, duct sections or finished walls. Use suitable fixings for the substrate rather than relying on general-purpose screws in a high-vibration environment.

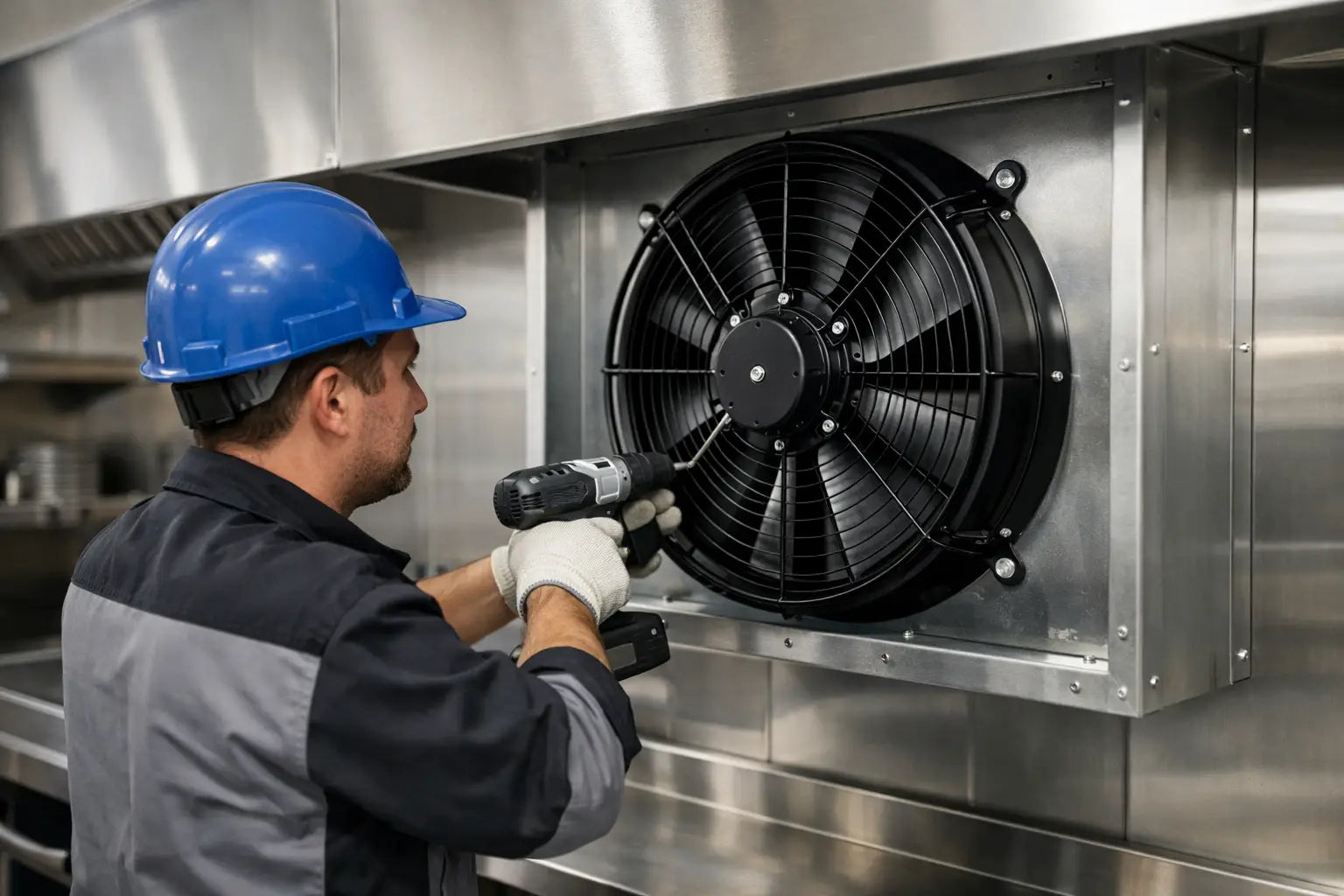

Mount the fan square and level, with the airflow arrow pointing towards the discharge route. Tighten fixings evenly. Over-tightening can distort lightweight casings, while under-tightening allows movement and noise. Where specified, fit anti-vibration mounts or pads between the fan and support structure.
Connect ductwork or fit the external louvre and guard. Keep the run straight and unrestricted for as much of its length as possible. A sharp bend immediately before or after an axial fan can create turbulence, reduce delivered airflow and increase sound levels. Ensure that all guards are fitted before energising the unit.
Make the electrical connections in accordance with the wiring diagram supplied with the fan. Use correctly rated cable, glands and containment for the environment. Cable entries must be secure and sealed as required by the fan’s ingress protection rating. Never energise a fan with exposed terminals, missing covers or an unsecured cable.
Test airflow, rotation and noise
Commissioning is where an installation becomes a working ventilation solution. Once the area is clear and all covers are in place, energise the fan briefly and verify the direction of rotation and airflow. For three-phase units, an incorrect rotation direction may require two phases to be swapped by a competent electrician.
Listen closely during the first run. Excessive vibration, rattling, scraping or a drumming sound through ductwork usually points to a problem that should be corrected immediately. Common causes include loose fixings, an unbalanced impeller, poor support, duct contact with the building structure or a restrictive grille.
Then check that the fan is performing its intended job. A piece of lightweight tissue can provide a basic indication at an extract point, but commercial systems should be assessed with appropriate airflow and pressure measurements. If extraction is weak, do not assume the fan is undersized. A closed damper, blocked louvre, incorrectly fitted shutter or duct restriction may be the real cause.
Avoid the mistakes that reduce fan life
The most expensive axial fan problems are often installation problems. Fitting a unit without allowing for system resistance can leave a space under-ventilated from day one. Mounting directly onto a thin panel without reinforcement can create persistent noise. Omitting a weather louvre on an external discharge can bring rain into the system and shorten motor life.
It is also worth considering replacement air. Extraction removes air from a building. If there is no practical route for fresh air to enter, the fan works against negative pressure and performance drops. Doors may become difficult to open, combustion equipment can be affected, and air may be drawn in from unsuitable areas. Balanced airflow is especially important in busy kitchens and enclosed production spaces.
Maintenance should be planned at installation stage. Grease, dust and airborne contaminants build up on guards, blades and shutters, reducing airflow and increasing load on the motor. Set inspection intervals according to the operating environment, and keep access clear for cleaning and servicing.
When a standard installation is not enough
A straightforward axial fan is often an effective choice for short, low-resistance extraction routes. However, it may not be the right answer where high pressure is needed, ductwork is extensive, contaminants require treatment, or noise limits are strict. In those cases, a centrifugal fan, inline fan or complete engineered extraction system may provide better results.
For sites with bespoke stainless steel hoods, complex duct routes or demanding commercial extraction requirements, a coordinated design avoids the familiar problem of individually suitable components that do not perform well together. CanopyMan supplies and installs ventilation equipment built around the actual site conditions, rather than forcing a standard arrangement into an unsuitable space.
A correctly installed axial fan should run quietly, move the required volume of air and remain straightforward to service. Treat the mounting, ductwork and commissioning as part of the fan system, not as afterthoughts, and the equipment will deliver dependable extraction for years to come.
