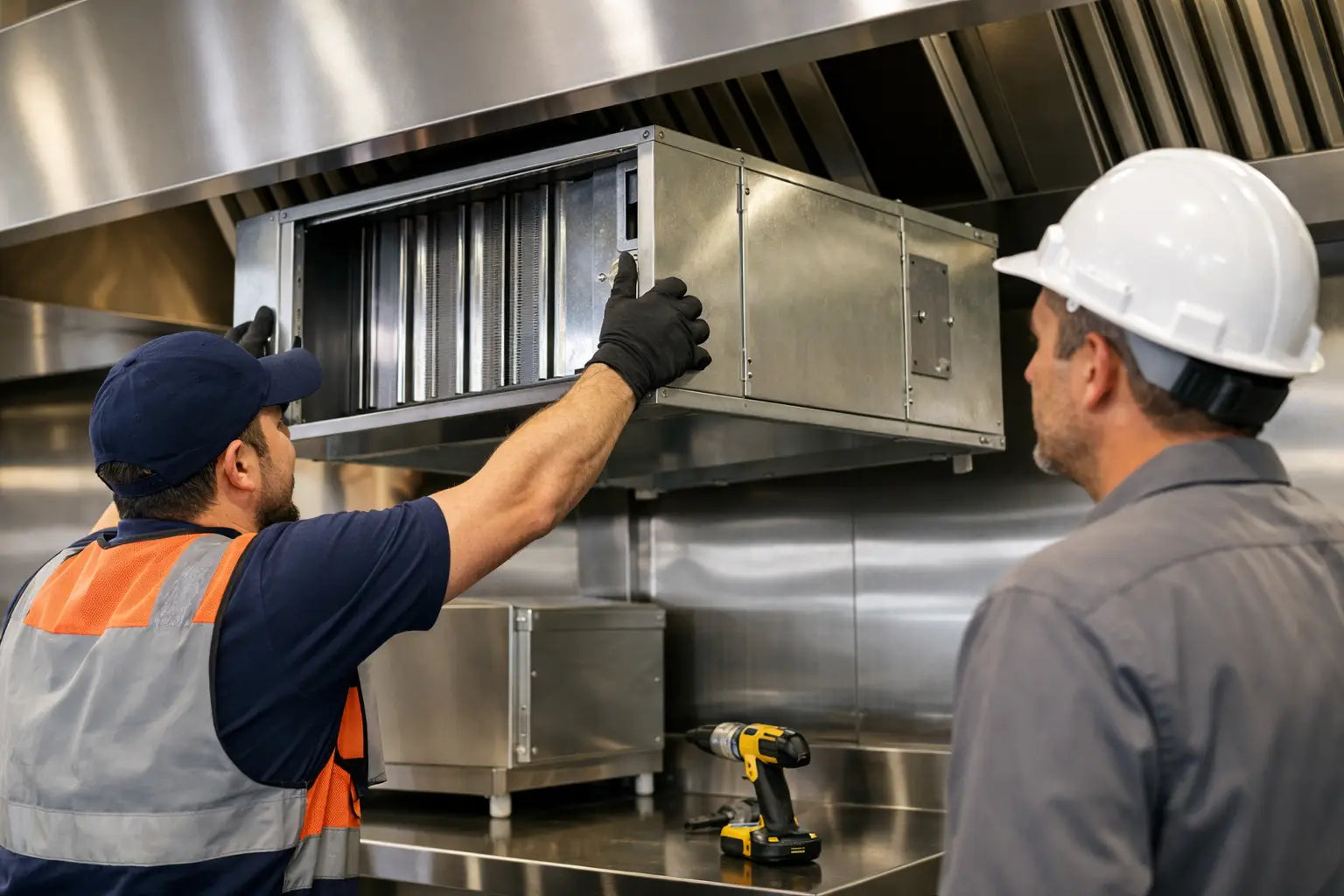

A poorly installed ESP unit rarely fails in a dramatic way. It usually fails in the expensive way - weak extraction performance, nuisance trips, messy ductwork, difficult servicing, and complaints about lingering grease or smoke. If you are looking at how to install esp unit equipment in a commercial kitchen, workshop or industrial extraction line, the real job is not just fixing a box to a wall. It is making sure the whole system works as one dependable, compliant setup.
ESP units are designed to remove grease, smoke and fine particulates from extracted air before discharge. That makes them a strong fit for demanding sites where air quality, odour control and duct cleanliness matter. But installation quality directly affects performance. Even a premium-quality unit can underperform if airflow is wrong, access is poor, or the electrical supply has been treated as an afterthought.
Before you install an ESP unit, start with the system
The first decision is not where the ESP goes. It is whether the extraction system around it has been sized properly. Air volume, grease load, cooking or process type, duct route, fan specification and discharge position all need to be considered together.
In a busy commercial kitchen, for example, an ESP unit handling light vapour from occasional cooking has a different duty from one dealing with heavy grease and smoke from chargrills or continuous frying. In a workshop or factory setting, the contaminant profile also changes the specification. That means there is no single answer to how to install esp unit systems. The correct approach depends on the application, airflow rate and maintenance demand.
At this stage, check three practical points. First, confirm the unit is sized for the designed air volume. Second, make sure the fan can overcome the system resistance once the ESP and filters are included. Third, decide where service access will be available. If engineers cannot safely reach cells, pre-filters or drain points, routine maintenance becomes a problem from day one.
Choosing the right location
An ESP unit should be installed where it can do its job efficiently and be maintained without disruption. In most commercial extraction systems, that means positioning it in line with the extracted airstream after grease filtration at canopy level and before final discharge. In some layouts, it may sit internally within a plant area. In others, it may be mounted externally in a weather-protected configuration.
The best location balances performance, access and structure. The mounting surface or support steelwork must be capable of carrying the operating weight of the unit. Leave enough clearance for opening access panels and removing ESP cells safely. If clearance is tight, servicing time rises and maintenance standards tend to slip.
You also need to think about routing. Keep duct runs practical and avoid unnecessary bends immediately before or after the unit. Turbulent airflow can reduce separation efficiency, while awkward transitions can create pressure losses that affect the whole extraction line.
Internal or external installation
Internal installation can protect equipment from weather and simplify access, but it demands good plant space planning and safe drainage arrangements if the system produces condensate or captures grease. External installation can free up internal space, though it requires proper weather protection, stable supports and suitable electrical isolation for outdoor conditions.
There is no universally better option. It depends on building layout, maintenance strategy and available space.
Ductwork matters as much as the unit itself
A common installation mistake is treating the ESP as a standalone product instead of one part of a full extraction system. The ducting connected to it should be correctly sized, properly supported and sealed to suit the air volume and contaminant load.
Where grease-laden extract is involved, ductwork specification needs to reflect that duty. Joints should be secure, access for cleaning should be considered, and the route should support hygiene and fire safety requirements. If duct sizes reduce abruptly or bends are introduced without thought, pressure drops increase and extraction performance suffers.
Transitions into and out of the ESP should be smooth rather than improvised on site. A rushed adaptor might get the system connected, but it can also cause air leakage, vibration and poor flow distribution across the unit. Good fabrication and correct fit-up make a visible difference here.
Support and alignment
Do not hang the weight of the ductwork off the ESP casing unless the manufacturer specifically allows it. The unit and the ducting should both have proper independent support where required. Misalignment puts stress on flanges, causes vibration and can shorten equipment life.
When the system is being assembled, check that access doors, control panels and service points remain usable after duct sections are in place. Installers sometimes get the main line connected only to find a panel cannot open fully.
Electrical connection and controls
An ESP unit is not a simple plug-in appliance. It relies on high-voltage internal components to charge and collect particulates, which means electrical installation must be handled correctly and by competent professionals. Power supply requirements should match the unit specification exactly, and isolation for servicing must be clear and accessible.
In practical terms, that means confirming voltage, phase, protective devices and cable sizing before the unit arrives on site. It also means integrating the ESP control arrangement with the fan system so that operation is coordinated. On many systems, the fan and ESP should be interlocked so the unit does not run in isolation or remain energised when it should be off.
If the site has a building management system or fire alarm interface, those connections need planning early. Retrofitting controls after installation usually costs more and creates avoidable downtime.
How to install ESP unit equipment safely
Safety is not a finishing touch. It should shape the installation from the first site survey. ESP units deal with extracted air that may contain grease, smoke or fine contaminants, and they use electrically charged collection technology. That means safe isolation, proper earthing, access control and maintenance planning all need to be in place.
The installation team should work to the product specification, site risk assessment and applicable regulations. In commercial kitchens and industrial facilities in the UK, that often includes attention to ventilation performance, fire risk, access for cleaning and electrical compliance. If the unit is part of a larger canopy and extraction package, all connected elements should be reviewed together rather than signed off one by one.
Drainage, cleaning and service access
Some ESP installations need grease collection or drainage arrangements depending on design and application. These should be fitted neatly and positioned for straightforward cleaning. If captured grease has nowhere sensible to go, the area around the unit quickly becomes difficult to manage.
Service access should allow safe removal and cleaning of collector cells and filters. Leave enough room, provide lighting where needed, and avoid placing the unit in a location that requires awkward ladders or disruptive shutdowns across the whole site.
Commissioning is where installation proves itself
Physical installation is only half the job. Commissioning confirms whether the ESP unit and the wider extraction system are actually working to design intent. That includes checking airflow, fan rotation, electrical operation, control response and any fault indicators on the unit.
At commissioning stage, listen for vibration, look for air leakage at joints, and confirm the system draws correctly from the canopy or extraction points. If performance is poor, the cause is often elsewhere in the line - undersized ductwork, incorrect fan selection, poor balancing or restricted filters.
This is also the right time to brief the site team. Operators and facilities staff should know what normal operation looks like, how often cleaning is required, what warning indicators mean and when to call for service support. A well-installed unit still depends on regular maintenance.
The most common installation problems
Most site issues come from avoidable shortcuts. Units get squeezed into inaccessible corners. Duct routes are altered without recalculating pressure losses. Power supplies are assumed rather than checked. Maintenance clearance is sacrificed to save floor space.
The trade-off is always the same. A quicker install at the start usually leads to higher service costs later. If your site runs long hours, has heavy grease load or cannot tolerate extraction downtime, getting the installation right first time is worth far more than shaving a few hours off the programme.
For many operators, the best route is to work with a supplier that understands design, fabrication and installation as one package. That reduces mismatch between product specification and site reality, particularly on custom systems where airflow, canopy design, fan duty and ESP sizing all need to line up.
A good ESP unit should make your extraction system cleaner, more efficient and easier to manage. But it only does that when the installation has been planned with the same care as the equipment itself. If the site, ductwork, power supply and service access all make sense, the unit has every chance of delivering the reliable performance your operation depends on. That is the standard worth insisting on.
