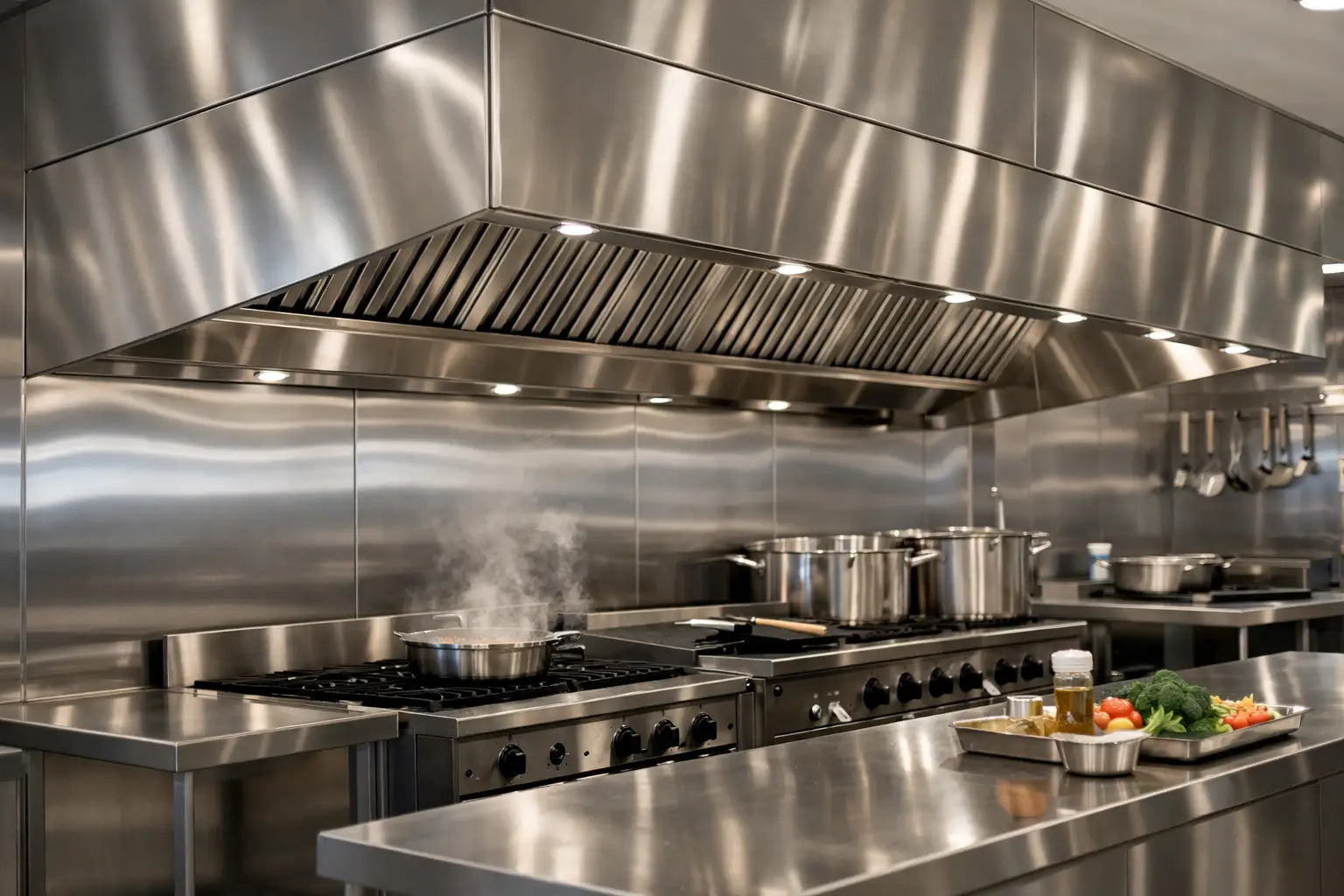

A canopy that looks right on paper can still fail on site. Smoke rolls past the front edge, heat hangs in the room, grease loads the duct too quickly, and staff end up working in a hotter, dirtier space than they should. If you are working out how to size extraction canopy systems properly, the answer is not just canopy width and depth. It is capture area, appliance duty, airflow volume, mounting height and how the full system performs together.
Get the sizing right, and the extraction works harder where it matters. Get it wrong, and you pay for poor performance twice - once in installation cost and again in energy, cleaning and disruption.
What sizing an extraction canopy really means
When people ask how to size extraction canopy units, they often mean one of two things. The first is the physical size of the hood. The second is the extraction rate needed to remove heat, grease, steam, fumes or dust effectively. In practice, both have to be calculated together.
A larger canopy with weak airflow will not capture contaminants consistently. A small canopy with very high airflow may still miss the plume if the hood does not cover the source properly. This is why professional sizing always starts with the duty below the canopy, then works out the canopy footprint and air volume as one package.
In commercial kitchens, the design must account for grease, heat and moisture from cooking equipment. In workshops or light industrial settings, the concern may be hot process air, oil mist or general fumes. The source changes the design approach, but the principle stays the same: contain the contaminated air at source before it spreads into the room.
Start with the equipment line, not the room size
The most common mistake is sizing the canopy from the room dimensions. Extraction canopy design should be led by the equipment creating the load.
Measure the full cooking or process line first. Include every appliance that will discharge heat, grease or vapour under the hood, and do not ignore future additions. If the line is likely to change within a year or two, it usually makes sense to size with some allowance rather than fit a system that is already at its limit on day one.
For a kitchen, note whether the line includes light, medium or heavy-duty appliances. A canopy over a dishwasher and a couple of ovens is not sized the same way as one over chargrills, fryers and solid-top ranges. Heavy-duty cooking creates stronger thermal plumes and more grease-laden air, so both canopy dimensions and extract rate need to increase.
In a factory or workshop, identify whether the canopy is capturing general heat, intermittent fumes or a consistent process discharge. If contamination is localised and forceful, a canopy may need to be deeper or positioned lower to maintain control.
Canopy overhang matters more than many buyers expect
A canopy should extend beyond the equipment footprint so it can catch the rising plume before room air currents push it away. As a working rule, the canopy normally needs an overhang on the open sides. The exact amount depends on appliance type, mounting height and cross-draughts, but too little overhang is one of the main reasons for poor capture.
If the hood finishes flush with the equipment edge, the system is relying on perfect upward movement of hot air. Real sites rarely behave that neatly. Staff movement, supply air, open doors and general room turbulence all affect the plume. Proper overhang gives the canopy a better capture envelope and more reliable performance.
This is especially important for appliances at the front of a cooking line, such as fryers or griddles, where the thermal plume can spill forward. In industrial settings, side exposure can be just as critical if there are nearby walkways, roller shutters or fans creating air disturbance.
How to size extraction canopy airflow
Once the canopy footprint is established, the next question is extraction volume. This is where many off-the-shelf comparisons become misleading, because the right air volume depends on the duty under the hood and the way the canopy is installed.
Airflow is commonly calculated from face velocity, capture velocity or empirical rates based on appliance type. In practical terms, a light-duty canopy needs far less extract than one serving heavy grease-producing equipment. Mount the canopy higher, and the required airflow usually rises. Add cross-draughts, and it may need to rise again.
This is why there is no single airflow figure that works for every 3 metre canopy. Two canopies with identical length and width may need very different fan duties depending on what they are covering.
For commercial kitchens, the extract rate should be balanced to remove contaminated air effectively without creating unnecessary energy waste. Oversizing the fan can increase running costs, noise and replacement air problems. Undersizing leads to poor capture, discomfort and compliance risk. The correct point is where the canopy captures consistently under normal operating conditions, including peak service periods.
Mounting height changes the calculation
The higher the canopy sits above the source, the more opportunity there is for the plume to spread. That usually means a larger canopy, higher airflow, or both. Buyers sometimes ask for extra clearance for visual openness or access, but every added millimetre can affect capture efficiency.
A lower-mounted canopy generally performs better because it intercepts the plume earlier. That said, it still needs to suit safe operation, cleaning access and headroom. Good design is a balance between practical clearance and effective containment.
Make-up air cannot be ignored
An extraction canopy removes air from the room, so that air has to be replaced. If the replacement air strategy is poor, the canopy can struggle even when the fan duty is technically adequate.
Too much negative pressure can pull in draughts from doors and adjacent spaces, disturbing the plume and making the area uncomfortable. Well-designed make-up air helps the canopy do its job without pushing fumes back into the workspace. In larger kitchens and industrial environments, this should be treated as part of the sizing exercise, not an afterthought.
Ductwork and fan selection affect canopy performance
A correctly sized canopy can still underperform if the duct route and fan are not matched to it. Long duct runs, sharp bends, poor transitions and undersized ductwork all increase resistance. If that resistance is not accounted for, the fan may never deliver the intended extract rate on site.
This matters because canopy sizing is not just a fabrication question. It is a system question. The hood, filters, ductwork, fan and discharge arrangement all need to work together.
Grease extraction in particular needs sensible duct velocities and suitable filtration. If grease is not managed properly at canopy level, the downstream maintenance burden increases. If duct velocities are wrong, you can end up with noise, pressure loss or grease deposition issues. This is one reason bespoke manufacturing and installation support often provide better results than trying to force a standard unit into a non-standard site.
Common sizing mistakes
The first is choosing a canopy to match the appliance line exactly, with no allowance for overhang. The second is assuming all cooking equipment has the same extraction demand. The third is selecting fan size from a generic chart without considering duct losses, mounting height or replacement air.
Another frequent issue is planning around current equipment only, even when the client already knows the line may expand. Retrofitting a larger canopy, fan or duct later is usually more expensive than designing some spare capacity at the start.
There is also the temptation to oversize everything as a precaution. That can work, but it is not always efficient. Bigger is not automatically better if the result is excessive energy use, high noise levels or difficult balancing.
When standard sizing is enough and when custom is better
A standard extraction canopy can be suitable where the equipment layout is straightforward, the duty is predictable and the duct route is simple. That is often the quickest route for common applications.
Custom sizing becomes the better option when the line includes mixed appliance duties, unusual dimensions, restricted ceiling heights or awkward duct routing. It also makes sense where hygiene, maintenance access or visual finish are important to the operation.
For trade buyers and facilities teams, custom manufacture is often the more commercially sensible choice when it reduces on-site adjustment, improves capture and shortens installation time. A canopy built around the real line and real route tends to perform better than one adapted after the fact.
A practical way to get the size right first time
Start with accurate measurements of the equipment line and the available installation height. Note appliance types, heat and grease load, likely hours of use and any known expansion plans. Then review the air movement in the space - doors, supply grilles, open fronts and anything else that may affect capture.
From there, the canopy footprint can be set with suitable overhang, and the extract rate can be calculated against the actual duty rather than a rough guess. Once the canopy duty is clear, the fan and ductwork can be selected to deliver that airflow under real operating resistance. That is the point where a system moves from looking adequate to performing properly.
At CanopyMan, this is where build quality and proper specification make the difference. A premium-quality stainless steel canopy sized to the application, backed by the right fan, filtration and installation approach, gives you cleaner extraction, better durability and fewer surprises after handover.
If you are deciding how to size extraction canopy equipment for a new fit-out or replacement project, treat the hood as part of the full airflow system rather than an isolated product. That is usually the fastest way to get reliable performance, sensible running costs and a workspace that actually feels under control.
