A hood that looks right on paper can still fail on site. Smoke escapes, heat hangs in the room, grease builds where it should not, and staff end up working in a space that feels harder than it needs to. That is why any industrial hood design guide should start with performance, not appearance. The right design captures contaminants at source, suits the process below it, and keeps maintenance and energy costs under control.
For buyers, contractors and facilities teams, hood design is rarely a single-product decision. It affects fan sizing, duct routing, filtration, cleaning access, fire risk, noise, and the day-to-day usability of the workspace. Get it right, and the system works quietly in the background. Get it wrong, and every compromise shows up later in lost efficiency, call-backs and unhappy staff.
What an industrial hood design guide should focus on
The main job of an industrial hood is simple - capture airborne contaminants before they spread. In practice, that means understanding exactly what is being produced at the source. Grease-laden vapour from a busy commercial kitchen behaves differently from welding fume, solvent odour or hot process steam. The hood shape, size and position have to match that behaviour.
This is where many projects go off course. A standard canopy may suit one site perfectly and be entirely wrong for another. A charcoal grill line, for example, needs a different extraction approach from a light-duty prep area. A fabrication workshop generating fine particulate needs different thinking again. Good design starts with the process, then works outward to airflow, filtration and installation constraints.
The first question is capture. If the hood cannot pull contaminated air effectively from the source, larger fans and higher running costs will not fix the underlying issue. The second question is containment. Cross-draughts from doors, supply air, ceiling fans and staff movement can all pull fumes or grease outside the hood’s effective zone. The third is practical operation. If the system is difficult to clean, noisy, oversized or awkwardly fitted, performance often drops over time.
Hood type, size and position

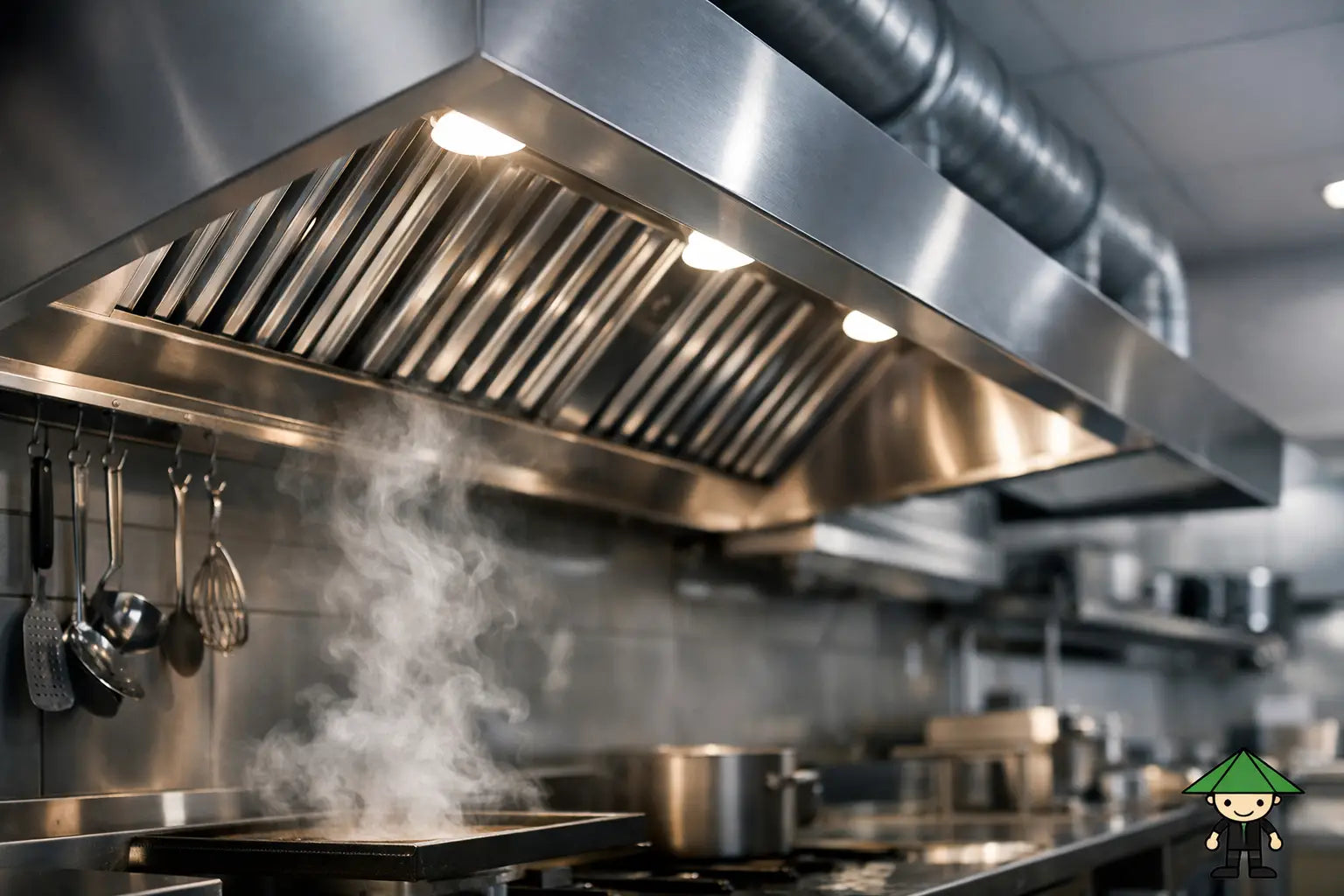

The most suitable hood design depends on what sits beneath it and how the room is used. Wall-mounted canopies are common and effective where equipment runs against a wall. Island canopies need more care because they are exposed on all sides and face greater disturbance from air movement around the room. Low-level extraction, side capture and bespoke enclosed designs can be better options where standard overhead canopy arrangements are not enough.
Size matters, but bigger is not always better. A hood should cover the active cooking or process area with enough allowance to improve capture, yet still fit the space without creating unnecessary bulk or excessive air volumes. If a canopy is too small, contaminants spill past the edges. If it is too large, it may increase capital cost and airflow demand without improving results.
Mounting height is equally important. Set the hood too high and capture weakens at source. Set it too low and it interferes with operations, visibility and access. There is always a balance between effective extraction and a workable production environment. That balance is best decided early, while the equipment layout and duct routes are still flexible.
The effect of overhang and capture zone
One of the most overlooked details in an industrial hood design guide is overhang. The hood should extend sufficiently beyond the source area to help contain rising contaminants. This becomes more important with heavy-duty cooking equipment, high-heat processes or open-fronted workstations.
The capture zone also needs protection from disturbance. A perfectly sized hood can still underperform if a nearby door, air-conditioning discharge or make-up air grille creates turbulence across its face. In real sites, airflow interaction matters just as much as the hood itself.
Airflow is not just a fan number
Many buyers are understandably focused on extraction rate, but airflow volume alone does not guarantee good performance. Velocity at the point of capture, pressure losses through filters and ductwork, and the overall balance of supply and extract all play a part.
A well-designed hood system removes enough air to capture contaminants efficiently without creating an uncomfortable negative pressure in the room. Pull too hard without replacing air properly and doors become harder to open, the workspace feels draughty, and combustion appliances or nearby systems may be affected. Provide make-up air badly and it can disrupt the hood’s ability to capture what it is meant to remove.
That is why hood design should never be separated from the wider ventilation plan. The canopy, fan, ductwork and replacement air strategy need to be considered as one working system. This is especially important in commercial kitchens, factories and workshops where heat loads and occupancy can shift throughout the day.
Duct layout changes performance
Even an excellent hood can be undermined by poor duct design. Long runs, unnecessary bends, undersized sections and awkward routing all increase resistance and reduce system efficiency. They also raise noise levels and can make cleaning more difficult.
Straight, accessible duct runs are always preferable where the building allows. In grease-heavy applications, access panels and sensible routing are not optional extras. They are part of safe, maintainable design. A system that cannot be cleaned properly will not stay effective for long.
Filtration, discharge and compliance
Different contaminants require different filtration stages. In commercial kitchens, grease management is central to both performance and fire safety. Baffle filters are common for first-stage grease removal, while more advanced systems such as electrostatic precipitator units can be a strong choice where higher filtration efficiency is needed before discharge.
In industrial settings, the filtration approach depends on the pollutant. Dust, oil mist, smoke and odour all demand different solutions. There is no single correct specification for every site, which is why off-the-shelf thinking often creates problems later.
Discharge location matters as much as filtration. Extracted air has to leave the building in a way that limits nuisance, protects nearby intakes and helps meet site and regulatory requirements. In dense urban locations across the UK, this can be a major design constraint. Roof discharge may be preferred, but structural limitations, planning considerations and neighbouring properties can all influence the final solution.
Compliance should be built into the design from the start, not checked at the end. That includes fire considerations, hygiene, access for maintenance, and the relevant ventilation standards for the application. For trade buyers and facilities managers, this is where a manufacturer-installer with practical site experience adds real value. It reduces the gap between what is drawn, what is supplied and what actually performs after handover.
Material choice and build quality
A hood is a working piece of equipment, not a decorative feature. Material quality affects hygiene, durability and the long-term appearance of the installation. Stainless steel remains the preferred choice in most commercial and industrial environments because it handles demanding conditions well and supports easier cleaning.
Fabrication quality is just as important. Poor joints, sharp edges, thin-gauge material and badly fitted components usually show up quickly once the system is under daily use. A properly manufactured hood should feel solid, fit accurately, and stand up to cleaning routines without distortion or premature wear.
Custom fabrication often makes better commercial sense than trying to force a standard unit into a difficult space. It can improve capture, simplify installation and avoid expensive site modifications. That is particularly relevant where ceiling heights, beams, service runs or unusual equipment layouts limit standard options.
The real trade-off: capital cost versus running cost
Most buyers are balancing budget against performance. That is reasonable, but the cheapest hood rarely stays cheap. If the design increases fan energy use, needs frequent remedial work, or fails to control grease and heat properly, the lifetime cost climbs quickly.
A better approach is to look at whole-system value. Strong capture performance, energy-efficient airflow design, durable materials and sensible maintenance access usually pay back through lower disruption and better day-to-day operation. Premium-quality fabrication is not just about appearance. It protects reliability.
There are cases where a simpler system is entirely suitable. Not every site needs advanced filtration or a fully bespoke arrangement. But where the process is intensive, the layout is awkward, or compliance pressure is high, investing in the right design early is almost always the cheaper decision.
Choosing the right supplier for hood design
An industrial hood design guide would be incomplete without this point: the supplier matters. A company that can only sell a product is not always the right partner for a complex extraction job. Design, manufacture, installation and after-sales support work best when they are properly joined up.
That joined-up approach helps resolve the practical issues that cause delays - exact dimensions, service coordination, installation access, duct routing conflicts and future maintenance needs. It also gives buyers clearer accountability. If one partner is responsible from design through to commissioning, there is less room for avoidable mismatch.
For many projects, fully custom-built solutions are the difference between a system that merely fits and one that performs. That is where an experienced manufacturer such as CanopyMan can bring real value, particularly when stainless steel fabrication, extraction equipment and on-site realities all need to align.
A strong hood design does not announce itself every day. It simply captures what it should, keeps the workspace cleaner and safer, and supports the job without getting in the way. That is usually the clearest sign the design was right from the start.
