When a restaurant kitchen is under pressure, poor extraction shows up fast. Heat builds, grease settles where it should not, staff comfort drops, and the whole line feels harder to run. A clear restaurant kitchen canopy installation example helps cut through guesswork because it shows what a working system looks like in practice, not just on a drawing.
This is the point many operators and contractors reach after pricing a few standard options and realising the site is not standard at all. Ceiling heights vary, cooking loads change, duct routes are awkward, and the kitchen still has to operate safely and efficiently. A proper installation is about more than fitting stainless steel above a cookline. It is about airflow, access, fire risk, cleaning, compliance, and long-term reliability.

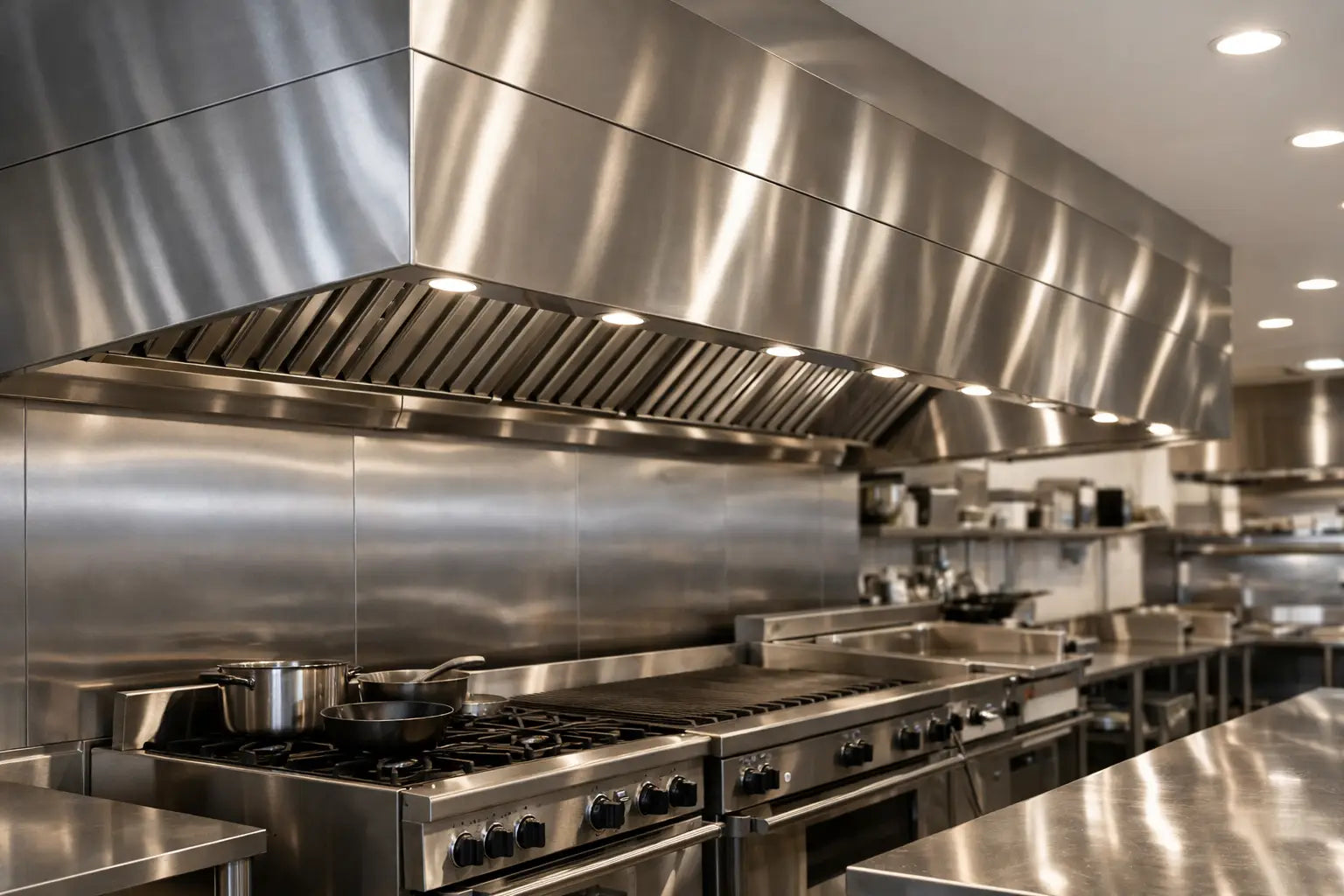

A practical restaurant kitchen canopy installation example
Take a medium-sized restaurant refit with a cookline made up of a six-burner range, chargrill, fryer and salamander. The kitchen sits in the middle of the unit, with limited external wall access and a tight rear service corridor. On paper, it sounds simple enough - fit a canopy, run ducting, add a fan. In reality, every one of those decisions affects performance.
The starting point is always the cooking process. A light-duty line producing soups and sauces does not need the same extraction approach as a hot line with grease-heavy frying and grilling. In this example, the cooking load is mixed but clearly grease-laden, so the canopy specification needs to reflect that. The size, overhang, grease filtration and extraction rate all need to match the actual appliances underneath, not a generic kitchen category.
A wall-mounted stainless steel extraction canopy is usually the right fit for this arrangement because the cookline is set against one side of the room. The canopy should extend beyond the appliance footprint to capture plume spread properly. If the canopy is too short or too shallow, the extraction rate often gets pushed higher to compensate, which can increase running costs without solving capture issues.
What happens on site before installation starts
The best results are won before fabrication begins. A proper site survey checks appliance positions, ceiling height, beam locations, service routes and discharge options. This is also the stage where practical constraints come into focus. If ductwork has to pass through a narrow riser or avoid structural steel, the canopy design and fan selection may need adjusting.
In our example, the rear route is the only realistic duct path. That means measuring carefully for offsets, access panels and support points. It also means thinking ahead about cleaning access. A tidy-looking duct run that cannot be maintained properly becomes an expensive problem later.
Electrical supply, make-up air and noise control also need to be part of the same conversation. Extraction is only half the system. If large volumes of air are pulled out without replacement air being introduced sensibly, doors slam, the kitchen goes negative, and the canopy may not capture as intended. That is where experience matters. Good installation is coordinated installation.
Fabrication choices that affect performance
This restaurant kitchen canopy installation example would typically use a bespoke stainless steel canopy built around the cookline rather than forcing the site to accept an off-the-shelf size. That gives better edge coverage, cleaner fitment and a more professional finish. It also makes it easier to integrate grease filters, lighting and drain options where needed.
Stainless steel grade and sheet thickness matter more than some buyers expect. In a busy commercial kitchen, weak fabrication shows up quickly through vibration, panel flex and poor finish quality. A well-built canopy should feel solid, sit square, and hold up to daily cleaning and heavy service conditions. The better the fabrication, the easier the installation tends to be as well.
Grease filtration is another area where cutting corners rarely pays. Baffle filters are common because they are durable, serviceable and suitable for many commercial cooking applications. Where grease loading is particularly high, upstream planning for additional filtration or ESP units may make sense, especially if discharge conditions are sensitive. It depends on the cooking profile, the building, and what the local environment demands.
Installing the canopy, ducting and fan
On installation day, sequence matters. The canopy has to be fixed level and securely supported before the ducting is completed. If the canopy is out of line by even a small amount, the whole system can end up looking poor and performing below standard.
For this example, the canopy is mounted over the cookline at the designed height to balance capture efficiency with safe working clearance. The ductwork is then assembled in galvanised or stainless sections, depending on specification and route, with sealed joints and suitable supports. Long horizontal runs are kept to a minimum where possible because they can become grease traps and add resistance to the system.
The extract fan is selected to suit the actual pressure loss of the installed system, not just the headline air volume. That distinction matters. A fan that looks right on paper can underperform if the duct run includes multiple bends, vertical lifts or filtration stages. This is where many cheaper installations fall short. The system is treated as a set of components rather than one working airflow package.
Where noise is a concern, attenuation may be built into the design. In a restaurant setting, especially in urban UK locations with neighbours close by, that can be essential rather than optional. The same goes for discharge position. The air has to be discharged in a way that supports compliance and avoids nuisance.
The compliance and safety side
A canopy installation is not just a metalwork job. Commercial kitchen extraction has to support safe operation and meet the demands of the site. Fire risk, grease management, cleaning access and airflow effectiveness all need to be considered from the start.
In this example, the system includes accessible filters, properly planned duct access points and a discharge route that can be maintained. That helps support routine cleaning and reduces the chance of grease accumulation in hidden sections. If the installation is difficult to clean, it usually will not be cleaned as often as it should be.
Documentation also matters. Buyers, landlords and contractors increasingly want clarity on what has been supplied, how it has been installed, and what maintenance is expected. A dependable supplier does not disappear after fitting day. After-sales support, replacement filters, fan servicing and upgrade options all have value over the life of the kitchen.
Where projects often go wrong
The most common mistake is under-specifying the system to protect the initial budget. That may look attractive at quote stage, but poor capture, excess noise and ongoing maintenance issues soon cost more. Another frequent issue is designing around available stock rather than around the kitchen itself.
Ducting is often treated as secondary, yet it can make or break the whole job. Too many bends, poor support, weak sealing or no access for cleaning create long-term problems. The same applies to replacement air. Extraction that ignores air balance is rarely efficient.
There is also a tendency to think bigger always means better. It does not. Oversized systems can waste energy and create uncomfortable working conditions if they are not matched properly to the cooking load and room layout. Good design is precise, not simply powerful.
Why a custom approach usually pays back
For restaurant operators, the practical value of a custom canopy installation is straightforward. Better capture means a cleaner kitchen environment, more consistent staff comfort and less strain on the operation during busy service. For contractors and facilities teams, a tailored system reduces site compromises and helps avoid callbacks.
This is where a manufacturer-installer has a real advantage. When design, fabrication and fitting are handled as one process, there is less room for mismatch between what was measured, what was made and what arrives on site. That joined-up approach is often the difference between a system that merely fits and one that performs properly.
Premium-quality materials, accurate fabrication and sensible airflow design are not extras. In a working kitchen, they are part of the value. A canopy system should earn its place every day through reliable extraction, straightforward cleaning and a solid service life.
CanopyMan works with this kind of requirement every day, where the right answer is based on site conditions, cooking demand and build quality rather than guesswork. If you are reviewing a project, the useful question is not whether a canopy can be installed. It is whether the full system will still be doing its job properly after months of heat, grease and hard commercial use.
That is the standard worth building to.
