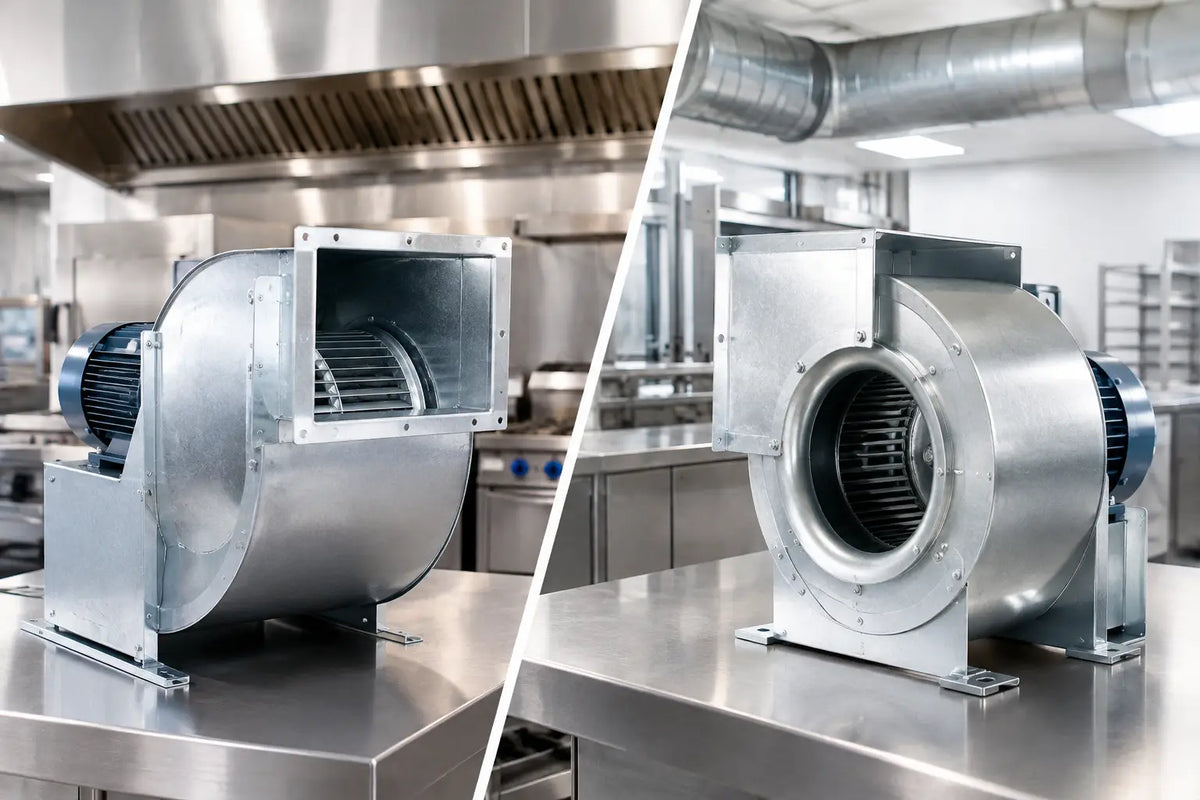

A TCBBX2 vs TCBTX2 fans comparison usually comes down to more than physical size or quoted airflow. These Soler & Palau centrifugal fan ranges use different impeller designs, so they respond differently to resistance in ductwork. That distinction matters when the system includes canopy filters, bends, risers, attenuators, louvres and discharge terminals.
For a commercial kitchen or industrial extraction installation, the right fan is the one that delivers the required duty at the actual system pressure. Selecting on free-air airflow alone is a common and costly mistake.
TCBBX2 vs TCBTX2 fans: the core difference
The TCBBX2 range uses a backward-curved centrifugal impeller, while TCBTX2 models use a forward-curved impeller. Both are centrifugal fans intended for ducted ventilation and extraction, but the blade geometry changes how each fan handles pressure, efficiency and changes in the duct system.
Backward-curved impellers in TCBBX2 fans are generally suited to systems with more resistance. They are commonly specified where the duct run is longer, the route includes several fittings, or the system needs to maintain performance against a higher static pressure. Their performance characteristic also makes them a sensible choice where the final duct resistance may vary slightly as a project develops.
Forward-curved TCBTX2 fans can be a good fit for lower-pressure systems requiring useful air volume. They are often considered where the duct route is relatively straightforward and the duty has been properly calculated. They should not be treated as a lower-cost substitute without checking the fan curve, because an incorrect selection can leave the system short of extraction once filters load up or extra duct fittings are added.
The model designation alone does not replace a duty calculation. Fan size, motor option, supply type and speed control arrangement still need to be checked against the manufacturer’s published performance data.
Start with system resistance, not fan diameter
A fan has to overcome the total resistance created by the complete extraction route. In a commercial kitchen, that can include canopy filters, internal plenum losses, duct transitions, grease-rated ductwork, access panels, bends, attenuators and the final discharge arrangement. In a workshop, the source capture point, branch layout and any filtration equipment can have the same effect.
This is why two installations with the same canopy length may require very different fan duties. A short, straight duct route to a suitable discharge point places far less resistance on the fan than a route with a long vertical rise, multiple elbows and a silencer.
TCBBX2 fans tend to offer more flexibility where resistance is a significant part of the calculation. TCBTX2 fans can still be appropriate, but only where their curve meets the required airflow at the calculated static pressure. If the chosen fan only achieves the target figure with no resistance applied, it is not correctly specified for a ducted extraction system.
For new commercial kitchen work, the whole installation should be designed around DW172 principles. Ductwork construction and jointing should also meet the appropriate DW144 requirements. The fan is one part of that system, not a stand-alone compliance item.
Efficiency and running cost considerations
The impeller type affects energy use as well as airflow. Backward-curved centrifugal fans are generally favoured for their efficiency at appropriate operating points, particularly in systems that need to work against moderate or higher pressure. For sites running long kitchen service hours or continuous industrial extraction, that can be relevant over the life of the installation.
There is no automatic rule that TCBBX2 is the right answer on every project. A larger or higher-pressure fan operating well below its intended duty can waste energy, create unnecessary noise and make balancing more difficult. The aim is to select a fan that sits in a sensible part of its performance curve at the required duty.
Forward-curved TCBTX2 fans can be a practical option for a known, stable duty with lower resistance. The key is to account for the real installation rather than an idealised drawing. Allow for filters becoming dirty, future alterations to the duct route and any control settings likely to be used in normal operation.
Noise is an installation issue, not just a fan issue
Buyers often ask which range is quieter. The honest answer is that fan noise depends on the selected model, its operating point, its speed and how it is installed. A fan forced to work outside its suitable range can become noticeably louder regardless of impeller style.
Structure-borne noise also needs attention. A correctly selected fan can still transmit vibration into steelwork, roof supports or ductwork if it is mounted poorly. Suitable anti-vibration mounts, flexible connections where appropriate, properly supported ductwork and correctly sized attenuation all contribute to a better result.
Do not use a speed controller as a cure for a poor selection. Reducing fan speed may lower noise, but it also reduces extraction. In a kitchen, that can leave heat, vapour and cooking effluent at the canopy rather than drawing it into the extract system. In a workshop, it can reduce capture at the point where contaminants are produced.
Controls and electrical compatibility
Before specifying either range, confirm the electrical supply, motor type and compatible speed control method for the exact model. A controller must be matched to the fan motor and application. An unsuitable control arrangement can cause poor starting, excessive motor temperature, electrical noise or unreliable operation.
Variable control is useful where extraction demand changes through the day, but the lowest operating speed must still provide adequate capture and ventilation. In a commercial kitchen, that decision should reflect the cooking load rather than the preference for a quieter fan during service.
CanopyMan is an authorised UK dealer for Soler & Palau fans and speed controllers, so the fan and controller can be considered as a matched part of the extraction package rather than bought as unrelated components.
Installation details that affect the final result
The fan should be installed with access for inspection, cleaning and maintenance. This is particularly relevant on grease extraction systems, where poor access can turn a simple maintenance task into a disruptive job. The discharge position must also be considered early, not after the duct route has been fixed.
Keep duct transitions practical. A sudden reduction in duct size, undersized spigots or an excessive number of tight bends adds resistance that the original selection may not have allowed for. Fabricated ductwork, elbows, silencers and terminations need to be sized around the required duty, not simply around what is easiest to fit.
Material selection also matters for the wider installation. Standard fabricated items may suit many dry applications, while 304-grade stainless steel can be specified where the environment or cleaning regime demands improved corrosion resistance. For commercial kitchen canopy and ductwork work, correct construction, access provision and cleanable surfaces should be addressed from the beginning.
Which fan range is likely to suit your project?
Choose a TCBBX2 fan when the extraction system has meaningful pressure losses, when efficiency across a demanding duct route is a priority, or when the final duty needs a greater margin for real-world resistance. It is often the more natural starting point for complex commercial extraction layouts.
Consider a TCBTX2 fan where the required duty is lower pressure, the duct route is controlled and straightforward, and the manufacturer’s curve confirms it will provide the required airflow at the calculated resistance. It can be an effective choice, but it must be selected on duty rather than assumption.
The practical way forward is to set out the airflow requirement, duct dimensions, route length, fittings, filters, discharge arrangement and electrical supply before ordering. A fan curve can then be checked against a system that resembles the one being installed, which is far more useful than choosing between TCBBX2 and TCBTX2 on price or casing size alone.
