A busy kitchen can produce a visible plume of grease-laden vapour within minutes of service starting. When there is limited roof access, neighbouring properties or strict discharge requirements to consider, standard filtration alone may not be enough. So, what is an ESP unit? It is an electrostatic precipitator: an air-cleaning system designed to remove very fine grease, smoke and particulate matter from an extract airflow.
For commercial kitchens, food production areas and industrial processes, an ESP can be a practical part of a well-designed extraction system. It does not replace good canopy capture, correctly sized ductwork or regular cleaning. It improves what happens to the air after it has been extracted.
What is an ESP unit?

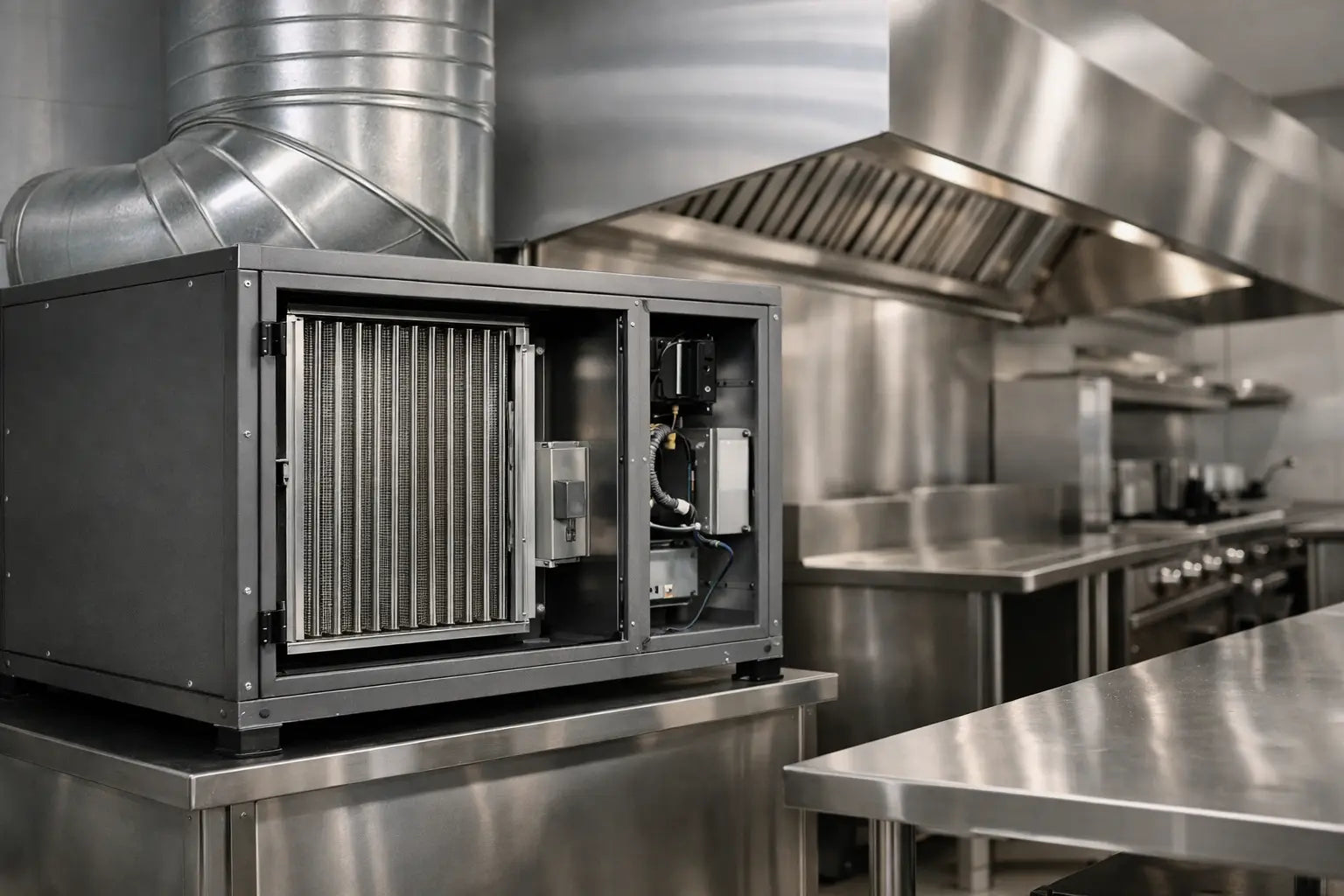

An ESP unit uses electrical charges to separate airborne particles from the extract air. In a commercial kitchen installation, it is normally positioned downstream of the primary grease filters and upstream of the fan or discharge point, depending on the system design.
The unit has two main working stages. First, a high-voltage ioniser charges the fine particles moving through it. Next, collector cells with oppositely charged plates attract and retain those particles. Cleaned air then continues through the system.
This method is particularly effective on the smaller particles that pass through conventional baffle filters. Those particles are often responsible for lingering odours, greasy deposits around discharge points and visible smoke. An ESP is not simply another mesh filter. It is an active filtration component that relies on correctly maintained electrical cells to perform as intended.
Why kitchen extract systems use ESP technology
A good extraction canopy captures heat, steam and contaminants at source. Baffle filters then remove a substantial amount of larger airborne grease. However, high-temperature cooking, frying and chargrilling generate much finer aerosolised grease and smoke. These lighter particles can travel further into the ductwork and out of the discharge point.
An electrostatic precipitator provides an additional filtration stage for this fine contamination. The practical benefits can include a cleaner discharge, reduced grease build-up in downstream equipment and improved conditions where the extract outlet is close to occupied areas.
This matters most where a kitchen has challenging site conditions. A restaurant beneath flats, a high-street unit with restricted duct routes, or a production kitchen operating long hours may need more control than a basic extract arrangement can provide. The right system can also help protect fan performance by reducing contamination reaching the fan and later sections of ductwork.
It depends on the cooking operation, though. A light-duty café with limited cooking may not require the same filtration level as a busy commercial kitchen serving fried food throughout the day. Equipment selection should follow the cooking load, airflow volume, duct route, available space and local environmental requirements.
How an ESP unit works in practice
Air first enters the extraction canopy and passes through primary grease filters. These filters are there for a reason: they stop larger grease droplets and protect the downstream system. The air then enters the ESP unit, where the ioniser charges the remaining fine particles.
As the charged particles pass through the collector section, they are drawn to the collector plates. Over time, grease and particulate matter build up on these plates. This is expected. The key is to remove, wash and refit the cells on a planned schedule so the unit can continue to collect effectively.
Many systems also include a pre-filter and, where odour control is required, carbon filtration after the ESP stage. Each section has a different job. The pre-filter captures larger debris, the ESP targets fine grease and smoke, and carbon media helps reduce odours. A complete specification should be based on the actual risk and operating conditions, rather than adding components that do not address the site’s problem.
The role of airflow and fan selection
An ESP unit only works properly when airflow is balanced and controlled. If the fan is oversized, air may move through the collector cells too quickly, reducing contact time and capture efficiency. If airflow is too low, the canopy may fail to contain the cooking plume in the first place.
The system needs to be designed as one package: canopy dimensions, filter arrangement, duct size, bends, fan duty, ESP capacity and discharge location all affect the final result. This is why off-the-shelf equipment can be a false economy when the kitchen layout or cooking equipment is unusual.
Electrical safety and controls
ESP units operate at high voltage internally, so safe access, isolation and correct installation are essential. The unit should be connected, commissioned and maintained by competent professionals. Interlocks can also be used to make sure the extraction system is operating when cooking equipment is in use.
A well-built installation should provide sensible access for inspection and cell removal. If cleaning the unit requires disruptive dismantling, maintenance is more likely to be delayed. That quickly affects filtration performance.
ESP unit maintenance is not optional
The strongest reason to choose an ESP is also the reason it must be looked after: it collects contamination that would otherwise leave the system. The collector cells eventually become coated with grease. When that coating builds up, the unit’s ability to charge and capture particles falls.
Maintenance frequency depends on the volume and type of cooking. Heavy frying, chargrilling and extended trading hours will demand more frequent attention than intermittent light cooking. A planned cleaning regime should include the primary filters, ESP cells, internal surfaces, associated ductwork and fan.
Signs that an ESP may need attention include reduced extraction performance, increased smoke at the cooking line, unusual electrical arcing, visible contamination at the discharge point or warning indicators on the control panel. Ignoring these signs can lead to poor air quality, higher resistance in the system and avoidable service disruption.
It is also worth being clear about fire safety. An ESP is a filtration device, not a fire suppression system, and it does not remove the need for appropriate grease management or professional duct cleaning. In commercial kitchen extraction, fire risk must be addressed through the complete system design, cleaning schedule and operating procedures.
Choosing the right ESP unit for your site
The correct unit is determined by more than the extract fan’s quoted airflow. Buyers should consider the duty of the kitchen, the equipment beneath the canopy, the hours of operation and the level of filtration required at discharge. Physical access matters too. A unit that cannot be safely serviced will not deliver reliable long-term value.
For a straightforward installation, a standard ESP unit may be suitable. For a larger restaurant, central production kitchen, factory process or site with restricted discharge options, a custom-built arrangement may be the better choice. This can include purpose-made stainless steel housings, matched canopies, suitable fan selection and properly planned access points.
Premium-quality stainless steel construction is valuable in demanding extraction environments because it stands up to regular cleaning and daily use. It also supports a cleaner, more professional installation where equipment is visible or located in a plant area that needs to remain serviceable.
At CanopyMan, ESP units can be specified as part of a complete extraction solution, with custom fabrication and installation support where the site requires it. The aim is not to fit the biggest unit available. It is to provide the right level of filtration, airflow performance and practical access for the operation.
When an ESP is the right investment
An ESP unit is often worth considering when smoke, fine grease or discharge quality is becoming a genuine operational issue. It can be especially useful where businesses need better control over extract emissions without compromising the capture performance of the canopy.
The best result comes from treating filtration as part of the full extraction design, not an afterthought added to a poorly performing system. Start with what is being cooked, where the contaminated air needs to travel and how the equipment will be cleaned. That approach gives you an extraction system built to work hard, stay serviceable and support your operation day after day.
