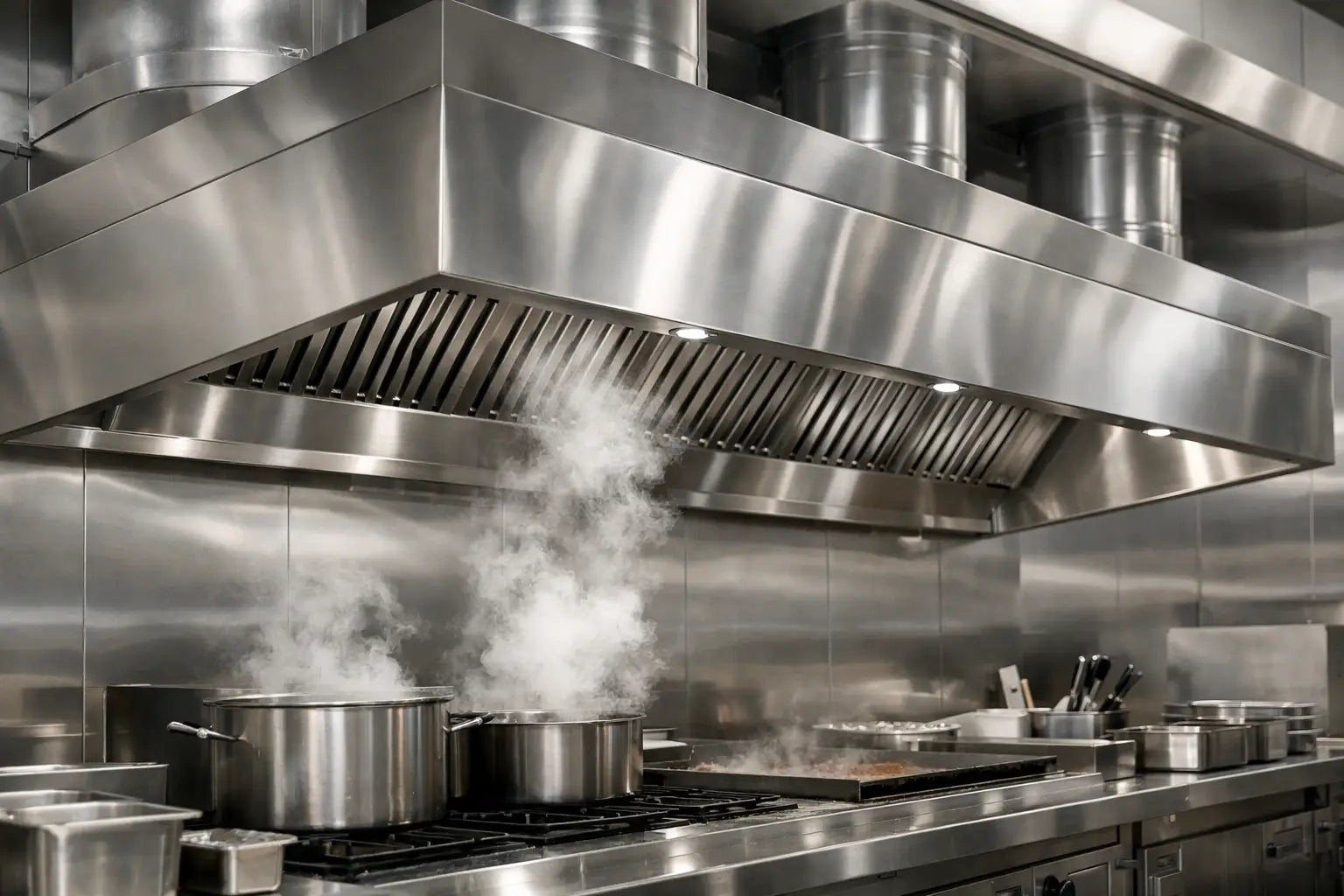

A busy cookline can produce heat, steam, grease-laden vapour and cooking odours within minutes. Without properly controlled extraction, that contamination spreads through the kitchen, settles on surfaces and equipment, and makes the working environment harder to manage. So, what is an extraction canopy? It is a purpose-built stainless steel structure fitted above cooking or process equipment to capture contaminated air at source and direct it into a ventilation system.
For commercial kitchens, workshops and industrial production areas, an extraction canopy is not simply a visible piece of metalwork. It is the collection point for a wider system that must be correctly designed around the equipment, room layout, duct route and required airflow. A properly specified canopy helps maintain cleaner air, protects the building and supports a safer, more productive workplace.
What is an extraction canopy designed to do?
An extraction canopy sits as close as practical above the source of heat, fumes, steam or airborne grease. Its job is to contain the rising plume before it escapes into the wider room. Air is then pulled through filters and into ductwork by an extraction fan, before being discharged outside or passed through suitable treatment equipment where site conditions require it.
In a commercial kitchen, the canopy typically serves appliances such as fryers, griddles, chargrills, ranges, ovens and wok stations. These appliances produce very different levels of heat and grease, which is why a standard off-the-shelf canopy is not always the right answer. A compact electric cookline and a high-output chargrill need different extraction performance.
In industrial settings, the same principle applies. A canopy may capture welding fumes, process vapours, airborne dust or excess heat, depending on the operation. The design must match the contaminant being controlled. A system intended for steam alone will not necessarily be suitable for grease or combustible dust.
How an extraction canopy system works
The canopy is one part of an engineered airflow route. When the extraction fan runs, it creates negative pressure inside the canopy plenum and ductwork. This draws the contaminated air upward through the canopy filters, stopping larger grease particles and debris from travelling further into the system.
The filtered air then moves through ductwork to the fan. Depending on the installation, the system may include an electrostatic precipitator unit, odour control equipment, acoustic treatment or specialist filtration before discharge. These additions can be particularly useful where a direct external discharge route is restricted or neighbouring properties are close by.
A complete installation also needs replacement air. Extracting large volumes of air without allowing fresh air to enter can make doors difficult to open, reduce canopy capture and create an uncomfortable environment. In some kitchens, a dedicated supply air system is required to balance the airflow. The aim is controlled movement of air through the space, not simply the highest possible fan speed.
The main components
A commercial extraction system usually includes the canopy, grease filters, ductwork, an extraction fan and an external discharge point. It may also require a control panel, speed controls, fire suppression provision, make-up air equipment and air-cleaning technology.
Each component affects the others. Undersized ductwork can restrict airflow, excessive bends can increase resistance, and a poorly selected fan may fail to deliver the required duty once the complete system is installed. This is why canopy specification should begin with a site assessment and equipment schedule rather than a measurement of the wall alone.
Why canopy design matters
The right canopy shape, size and position make a major difference to capture efficiency. If a canopy is too small, mounted too high or does not project far enough beyond the appliances, the thermal plume can spill around its edges. The fan may still be running, but heat and fumes will remain in the room.
Wall-mounted canopies are commonly used where cooking equipment is positioned against a wall. They are efficient because the wall helps contain the rising air. Island canopies are installed over central cooklines and need careful sizing because air can enter from all sides. In many cases, an island canopy needs a larger footprint and higher extraction rate than an equivalent wall-mounted installation.
A canopy can also be made with special features to suit the job. These include integrated lighting, stainless steel side panels, grease collection channels, sloping roofs, infill sections and made-to-measure dimensions for awkward spaces. Custom fabrication is often the most sensible route where ceilings are uneven, equipment is non-standard or ductwork must avoid existing services.
Choosing the right extraction canopy for a commercial kitchen
The correct canopy begins with the appliances underneath it. A kitchen using predominantly low-grease equipment may have different requirements from one operating solid-fuel cooking, chargrilling or continuous frying. Heat output, grease production, appliance arrangement and cooking hours all influence the required airflow.
The following questions help define the brief:
- What equipment will operate under the canopy, and what fuel does it use?
- Is the cookline against a wall or positioned as an island?
- What width, depth and height can the canopy occupy without obstructing access?
- Where can ductwork run, and where can air be safely discharged?
- Is additional filtration needed because of the local environment or planning conditions?
- How will fresh air enter the kitchen when the extract system is operating?
Stainless steel construction and build quality
Commercial extraction canopies are normally manufactured from stainless steel because it is durable, hygienic and well suited to demanding foodservice and industrial environments. It tolerates regular cleaning, resists corrosion and gives a professional finish that works with most commercial kitchen equipment.
Build quality is more than the gauge of the steel. Accurate folds, properly finished edges, secure filter housings and rigid construction all contribute to a canopy that performs well and stands up to daily use. Poorly made units can rattle, flex, collect grease in unsuitable areas or become difficult to clean.
At CanopyMan, canopies can be manufactured to suit the practical details of the installation, rather than forcing the site to fit a limited standard range. That includes bespoke dimensions, integrated features and coordinated ductwork requirements where needed.
Compliance, fire safety and maintenance
Commercial kitchen ventilation must be considered alongside fire safety, hygiene, building services and local authority requirements. The precise standards that apply depend on the building, cooking operation, fuel source and system design. A competent supplier or contractor should assess the whole installation, including the duct route and discharge location, not just the canopy itself.
Grease is a key consideration. It accumulates in filters and ductwork over time, creating hygiene problems, reducing airflow and increasing fire risk. Filters should be cleaned routinely, while ductwork cleaning should be completed by competent specialists on a schedule based on cooking volume and risk. Keeping records of cleaning and maintenance is good operational practice and can be valuable for insurers, landlords and environmental health inspections.
Fans and controls also need periodic checks. A system that sounds as though it is running is not automatically extracting at the designed rate. Blocked filters, worn fan components, damaged belts and changes to the ductwork can all reduce performance.
When a standard canopy is enough - and when it is not
A standard-size canopy can be a cost-effective option for a straightforward cookline with a clear duct route and conventional appliances. It can reduce lead time and provide an efficient solution where the dimensions genuinely fit the equipment and room.
Bespoke work is usually the better choice when the canopy needs to cover unusual appliance layouts, accommodate structural columns, align with a suspended ceiling or work within a restricted duct route. It may cost more initially, but a canopy that captures effectively and avoids later alterations is often better value than a poorly fitting unit.
The same applies to filtration. Not every project needs an ESP unit or odour treatment, but some sites do. The decision should be based on the discharge route, local conditions and the cooking process, rather than adding equipment without a clear purpose.
A well-designed extraction canopy gives the rest of the ventilation system a proper foundation. Start with the equipment, assess the site carefully and specify for real operating conditions. That approach produces cleaner air, more reliable performance and a kitchen or workspace that is easier to run day after day.
