Galvanised 90-Degree Spiral Duct Elbow (250mm – 630mm)
Galvanised 90-Degree Spiral Duct Elbow (250mm – 630mm)

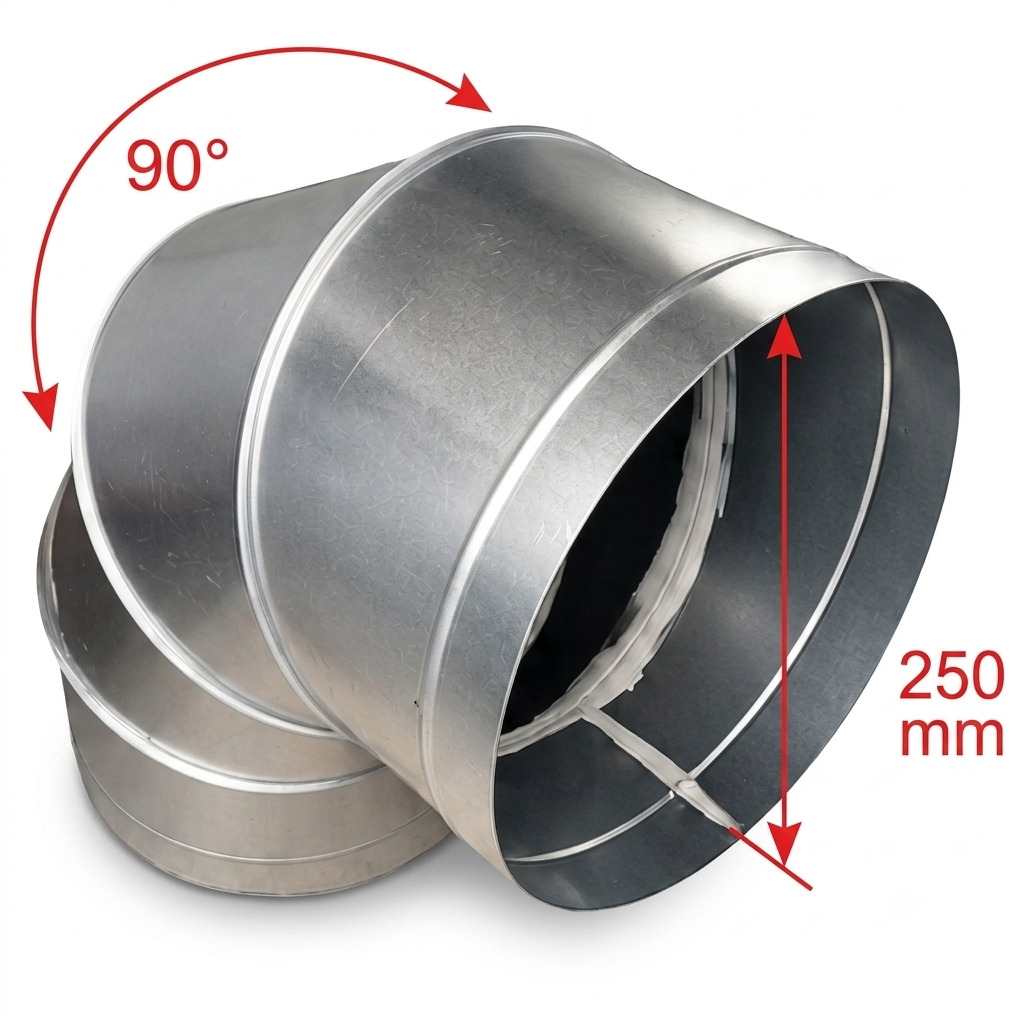

90-Degree Spiral Bent Elbow (Segmented)
Ensure efficient, high-volume airflow in your commercial or industrial HVAC systems with this heavy-duty 90-Degree Spiral Bent Elbow. Also known as a segmented or gored elbow, this component is engineered for optimal performance and durability, making it the perfect solution for critical round ductwork transitions.
Superior Construction Manufactured from high-grade galvanized steel in accordance with DW144, the UK industry specification for sheet metal ductwork, this spiral bent elbow offers exceptional corrosion resistance and a long service life, even in demanding environments. The segmented "gore-lock" design ensures a smooth, uniform radius that maximizes airflow efficiency and minimizes pressure drop.
Precision Fit & Variety of Sizes This elbow is precisely engineered to seamlessly integrate with your existing standard round spiral or plain ductwork. The precision-formed seams provide a tight, leak-resistant connection, crucial for maintaining system efficiency. We offer these elbows in a variety of sizes starting from 250mm to fit your specific project requirements.
Versatile Application Ideal for high-pressure, high-velocity heating, ventilation, and air conditioning systems, this 90-degree spiral bent elbow is suitable for:
- Commercial HVAC installations
- Industrial exhaust and filtration systems
- Dust collection ductwork
- Air distribution manifolds
Key Features:
- Size Options: Available in a variety of sizes starting from 250mm.
- Optimal Performance: Smooth-segmented construction reduces air turbulence and friction loss.
- Durable Material: Constructed from robust galvanized steel for maximum strength and protection against rust.
- Tight Seams: Precision-crimped and sealed joints ensure minimal leakage.
- Professional Finish: Clean, spangle-finish metal provides a professional appearance for exposed ductwork.
Specifications:
- Product Type: 90° Spiral Bent Elbow (Segmented / Gored)
- Sizes Available: Variety of sizes starting from 250 mm
- Angle: 90 Degrees
- Construction: Segmented (Gore-Lock)
- Material: Galvanized Steel, gauge per DW144 tables by diameter
- Standard: Manufactured in accordance with DW144
