fan box S&P CVAT

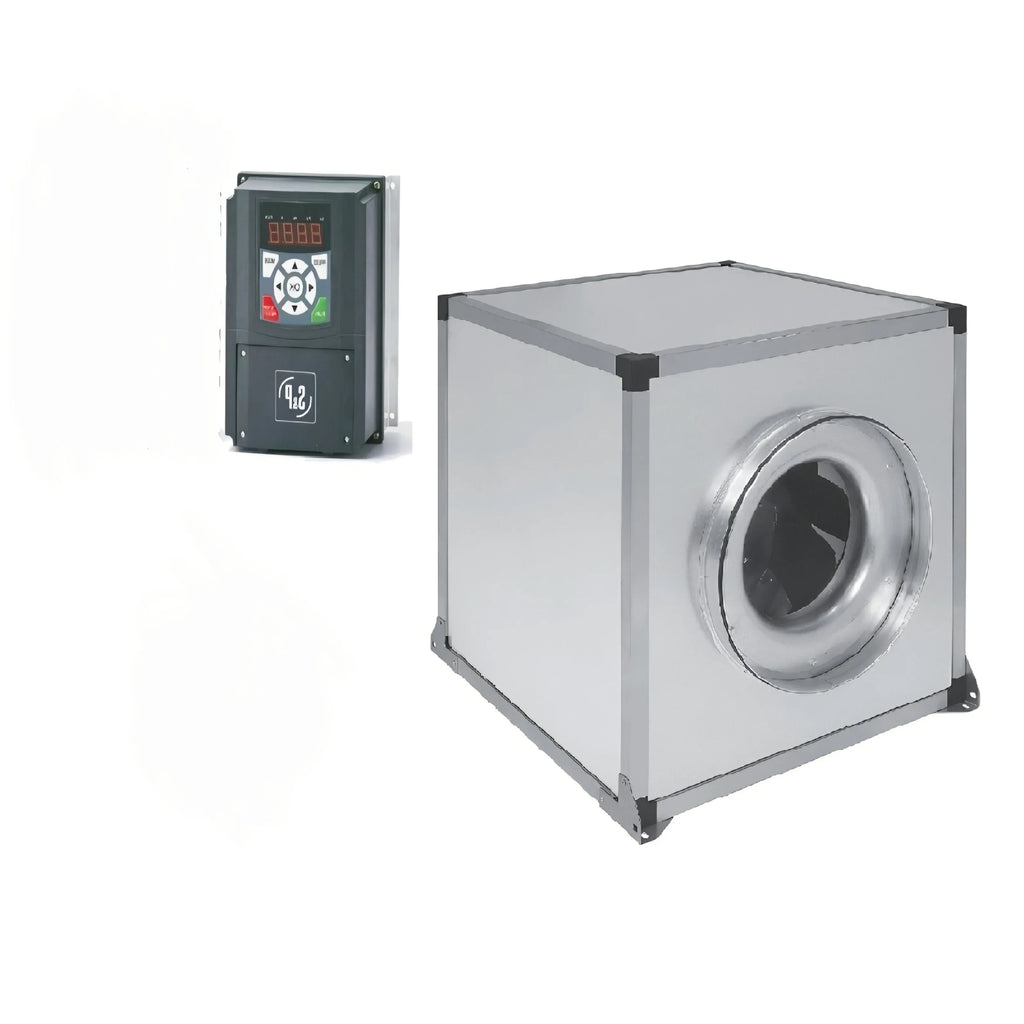

CVAT-N Series: High-Performance Centrifugal Cabinet Fans

Designed specifically for demanding commercial kitchen ventilation and industrial applications, the CVAT-N series offers superior durability and efficient airflow management. These three-phase, direct-drive centrifugal fans feature backward-curved impellers, engineered for high-performance extraction and consistent reliability in professional environments.

Technical Specifications by Size

• 450mm (6000 class): up to approx. 5,600-6,000 m³/h, 0.75kW absorbed power, approx. 45 dB(A), approx. 46kg
• 500mm (9000 class): up to approx. 9,000 m³/h, 1.1kW absorbed power
• 560mm (12000 class): up to approx. 12,000 m³/h, 2.2kW absorbed power
• 630mm (16000 class): up to approx. 16,000 m³/h, 3kW absorbed power

Key Design & Structural Features

Robust Cabinet Construction: Built with premium-grade aluminum profiles and double-thickness side panels for exceptional structural integrity.

Advanced Acoustic Insulation: Equipped with 25mm thick fireproof fiberglass lining, ensuring quiet operation and enhanced thermal efficiency.

Easy Installation: Integrated circular flange connections on both the inlet and outlet ensure seamless, hassle-free integration into existing ductwork.

Efficient Airflow: Features a high-strength steel backward-curved impeller, directly coupled to the motor for optimal performance within the airstream.

Electrical & Safety Specifications

• Motor: Three-phase, 4-pole
• Electrical supply: 230/400V, 50Hz
• Protection: IP55 rating with Class F insulation and integrated PTC thermal protection to prevent overheating

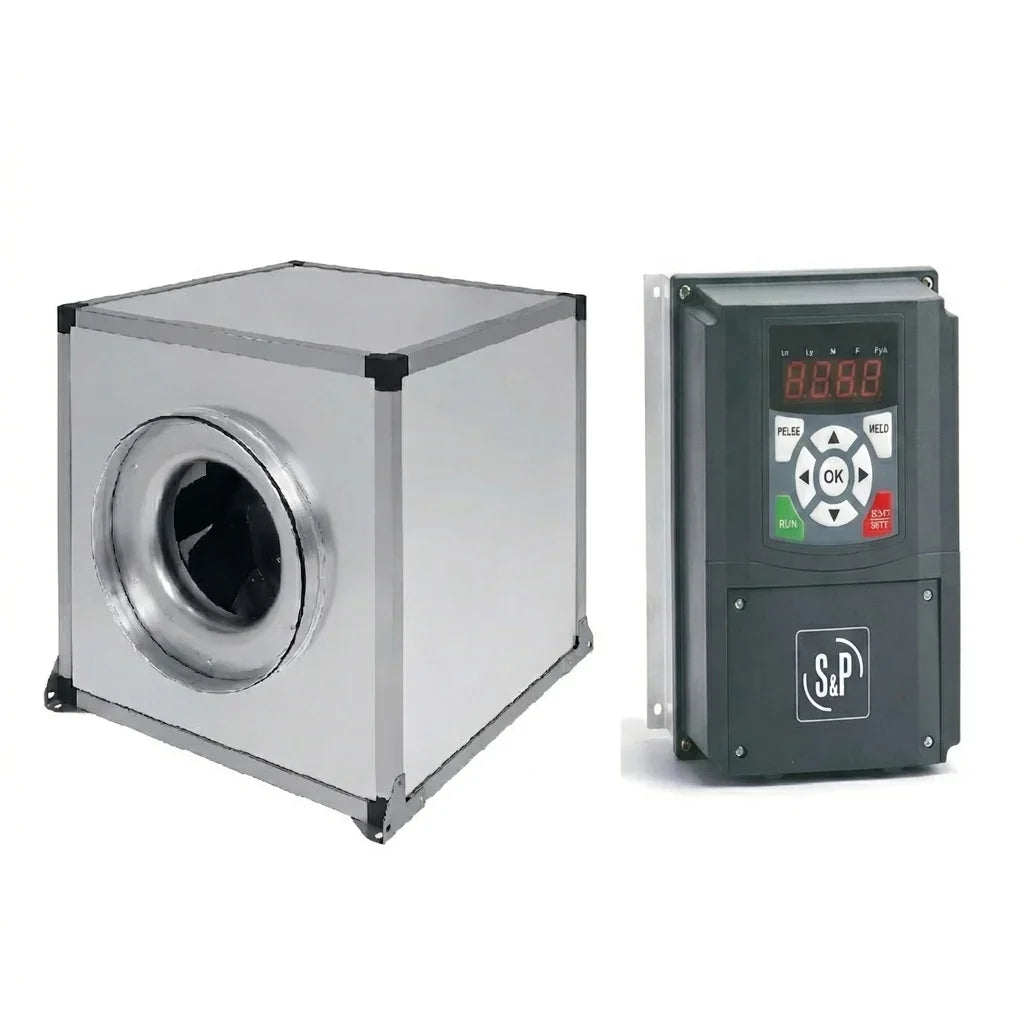

• Speed control: Fully compatible with VFDs (inverters) for precision speed regulation
• Operating temperature range: -20°C to +40°C

Exact airflow, noise, and weight figures vary slightly by motor configuration. Contact us with your required model size to confirm the precise performance data before ordering.
