S&P VENT-NK In-Line Centrifugal Duct Fan – Single Phase (150–250mm)
£147.00
Sale price
£147.00
Regular price
Taxes included.
Shipping calculated at checkout.

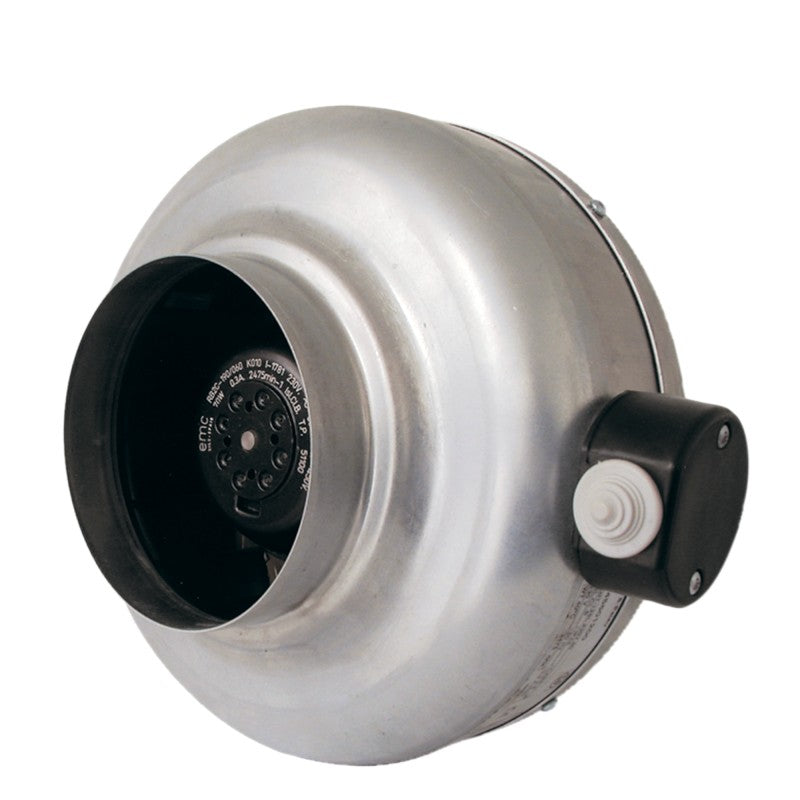

Genuine Soler & Palau VENT-NK in-line centrifugal duct fan for round ducting – a compact, quiet and reliable choice for kitchen, toilet, office and general ventilation runs.
- Casing of high-grade, corrosion-resistant pressed galvanised steel
- Backward-curved, non-stalling impeller, factory matched
- Enclosed single-phase external rotor motor with ball bearings and thermal overload protection
- Speed controllable by voltage – works with our S&P REB speed controllers
- Terminal box and mounting foot supplied as standard; support brackets included
- IP44, 230V 50/60Hz, ambient temperature -40 °C to +60 °C
Technical data
| Model | Duct | Max airflow | Speed | Power | Current | Weight |
|---|---|---|---|---|---|---|
| VENT-150NK | 150mm | 750 m³/h | 2,550 rpm | 95 W | 0.4 A | 5 kg |
| VENT-200NK | 200mm | 970 m³/h | 2,720 rpm | 147 W | 0.6 A | 5 kg |
| VENT-250NK | 250mm | 1,030 m³/h | 2,720 rpm | 149 W | 0.6 A | 6 kg |
Data from the manufacturer's catalogue.
