A workshop extraction system fails long before the fan is switched on if it has been specified around floor area alone. The real question is how to specify workshop extraction systems around the contaminant, the process creating it and the point at which it must be captured. Get those fundamentals right and the result is a cleaner workplace, better visibility, protected machinery and a system that performs consistently rather than simply making noise.
For UK workshops, extraction is also part of managing occupational exposure under COSHH. A general ventilation fan may improve the feel of a space, but it rarely provides the source capture needed for welding fume, wood dust, grinding dust, mist or vapours. A properly engineered local exhaust ventilation system is built around the job, not a catalogue airflow figure.
Start with the process, not the building
The first specification decision is to identify what must be extracted. Fine hardwood dust behaves differently from coarse sawdust. Welding fume rises with heat. Oil mist can travel beyond the machine enclosure. Solvent vapour may require a different approach to particulate filtration, and combustible dust introduces further design and safety considerations.
Record the material, operation, quantities used, operating hours and number of simultaneous workstations. Also consider whether the process is intermittent or continuous. A single bench grinder used for ten minutes at a time has a very different duty profile from a production line running across two shifts.
This assessment should establish whether source capture is practical. In most cases, it is the most effective approach. Extraction arms, machine guards, downdraught benches, enclosed booths and purpose-built pickup points all bring the extraction inlet close to the contaminant before it spreads through the workshop.
General room extraction may still have a place, particularly where heat or low-level background contamination must be controlled, but it should not be treated as a substitute for well-positioned local extraction.
How to specify workshop extraction systems for capture
Capture performance depends on position as much as volume. The inlet needs to be close enough to the source, correctly sized and arranged so the operator can work without blocking it. An oversized canopy placed too high above a grinding operation can be less effective than a smaller, correctly designed capture hood at the point of generation.

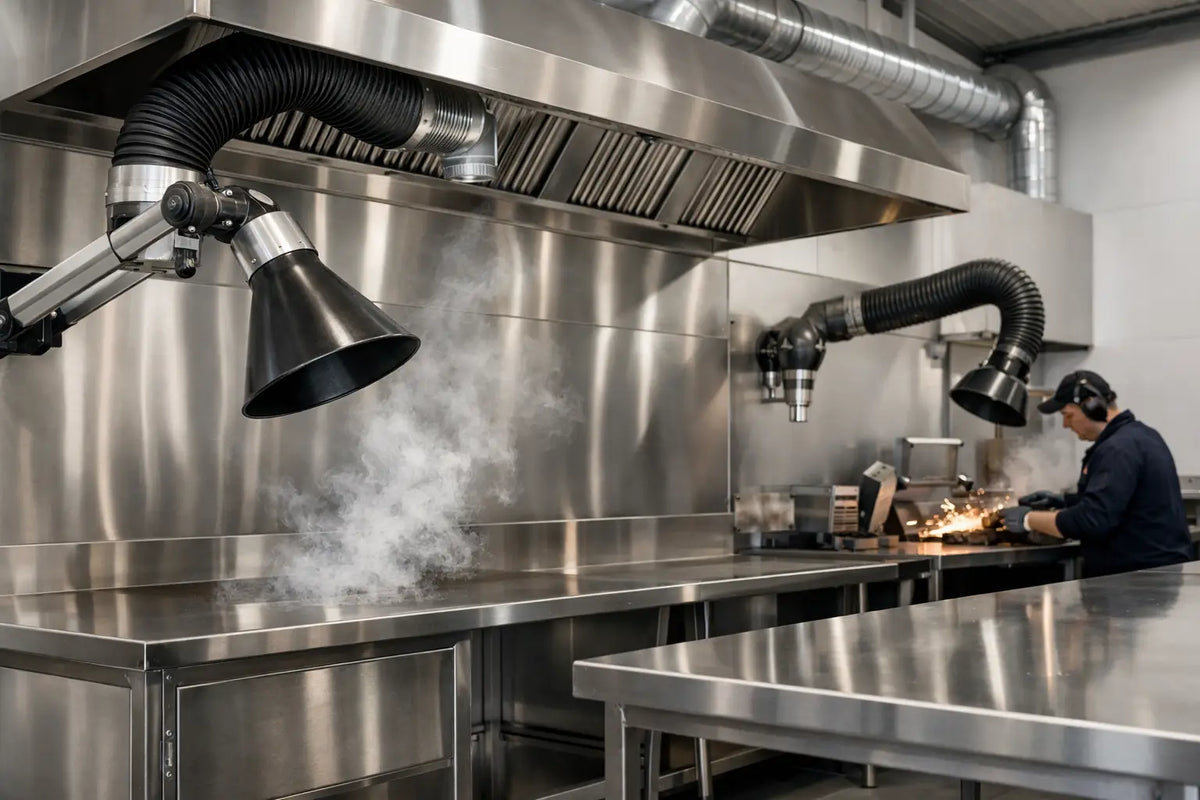

For each process, define the required capture arrangement before choosing the fan. Welding bays may need flexible extraction arms or partial enclosures. Woodworking machinery often requires dedicated machine connections, with allowance for the manufacturer’s recommended extraction volume. Grinding and polishing stations can benefit from back-draught or downdraught extraction where sparks and dust are drawn away from the operator’s breathing zone.
The direction of the contaminant matters. Hot fume rises, while heavier dust may fall or be projected forwards by the process. Cross-draughts from open roller shutters, doors or supply air grilles can pull contamination away from the hood. Where possible, position work areas to reduce these disruptions and use screens or enclosures where they improve capture.
Avoid specifying only an airflow figure in cubic metres per hour. Air volume is essential, but it must be linked to a defined hood, duct size and capture requirement. Without that detail, two systems quoted at the same airflow can deliver very different outcomes.
Calculate airflow and pressure together
The fan must overcome the full resistance of the system while delivering the required airflow at every pickup point. This is known as the system duty. It is determined by the combined pressure losses through hoods, ductwork, bends, branches, dampers, filters, silencers and discharge arrangements.
Ductwork should be sized to maintain a suitable transport velocity for the material being conveyed. If air moves too slowly, dust can settle in horizontal duct runs and reduce performance. If it moves too quickly, pressure losses, noise, energy consumption and duct wear can increase unnecessarily. The correct balance depends on the contaminant and application.
Keep the duct route short, direct and serviceable. Every unnecessary bend, abrupt change in diameter and poorly designed branch adds resistance. Long runs are sometimes unavoidable in existing premises, but they must be reflected in the fan selection rather than corrected later with a larger motor.
A system serving several machines also needs a clear view of diversity. Will all points operate together, or will operators use one machine at a time? Blast gates can help direct airflow to active machines, but they only work when operating procedures are clear and the system has been designed around them. Designing for full simultaneous use costs more initially, yet it may be necessary where production activity cannot be controlled.
Choose filtration and discharge for the contaminant
The filtration method should be selected after the contaminant has been identified, not as an add-on at the end of the project. Coarse wood dust, fine sanding dust, welding fume, oil mist and solvent vapour demand different collection and treatment methods.
Cyclone separators and dust collectors can be suitable for certain dry particulate applications. Cartridge filtration can capture fine dust, while electrostatic precipitator units are commonly used for applications involving smoke, grease or mist. In some cases, clean air can be returned to the workplace, but this requires careful consideration of contaminant type, filter performance, maintenance arrangements and applicable requirements. In other cases, safe discharge outside the building is the better option.
For combustible dust, the risk assessment must address fire and explosion hazards. This can affect the collector location, duct construction, earthing, isolation, pressure relief and whether ATEX-related requirements apply. It is not a detail to leave to a standard fan supplier.
Filter access matters commercially as well as technically. If a filter bank is difficult to reach, costly to replace or impossible to service without stopping a key production area, maintenance will be delayed. Specify access doors, safe working space and a sensible isolation method from the outset.
Plan for replacement air, noise and energy use
Every litre of air extracted from a workshop needs to be replaced. Without adequate make-up air, the building can fall into excessive negative pressure. Doors become difficult to open, cold air is pulled through gaps, combustion appliances may be affected and the extraction system can lose the airflow it was designed to achieve.
Replacement air should be introduced in a way that does not create disruptive draughts at extraction points. Tempered supply air may be worthwhile where high extraction volumes operate through colder months. It increases capital cost, but can improve worker comfort and reduce heating waste.
Noise needs the same practical treatment. Fans, air movement and discharge turbulence can affect operators, neighbouring units and local planning considerations. Fan selection, duct velocity, anti-vibration mounts, silencers and discharge location all influence the final noise level. A quieter fan is not automatically the right fan, but acoustic performance should be part of the duty specification.
Variable speed control can reduce energy use where demand changes throughout the day. It is particularly useful on systems with different operating modes, provided the lowest speed still maintains effective capture and transport velocities. Energy efficiency comes from the whole design: efficient fans, sensible duct routes, controlled airflow and filters kept in good condition.
Specify the installation, controls and verification
A workshop extraction system should be supplied with clear documentation, not just equipment. The specification should set out the processes served, design airflows, fan duty, duct materials, filtration stages, control method, discharge point and maintenance access. It should also state what is included for electrical works, supports, weather protection, commissioning and training.
Controls should suit the people using the workshop. A simple interlock that starts extraction with a machine can prevent operators from running a process without airflow. Filter condition indication, airflow monitoring and clear isolation controls give supervisors a practical way to spot problems early.
Once installed, the system must be commissioned against the design intent. Airflow at each point, fan performance, filter pressure and visible capture should be checked and recorded. LEV systems require thorough examination and testing at appropriate intervals, commonly at least every 14 months under COSHH, with some processes requiring more frequent examination. Routine checks between formal tests remain essential.
CanopyMan can manufacture and install custom extraction hoods, ductwork and fan systems around the actual layout of a workshop, helping turn a process assessment into a durable, workable installation.
Before approving a quotation, walk the route from the machine to the discharge point with the installer and maintenance team. That single exercise often exposes the details that determine whether the system will remain effective years after handover.
