A canopy is only as useful as the air it captures. Industrial canopies need to sit in the right position, cover the actual source of heat, vapour, dust or fumes, and connect to an extraction system capable of carrying that contaminated air away. A stainless steel canopy with the wrong overhang, poor duct position or inadequate fan selection will look finished while leaving the working area difficult to manage.
For catering, manufacturing and workshop environments, the starting point is not simply choosing a canopy from a catalogue. It is establishing what the process produces, where it is produced and how the air will travel from the canopy to its discharge point. That approach prevents costly alterations after installation and gives operators a system suited to the job rather than a generic metal cover.
What industrial canopies are designed to do

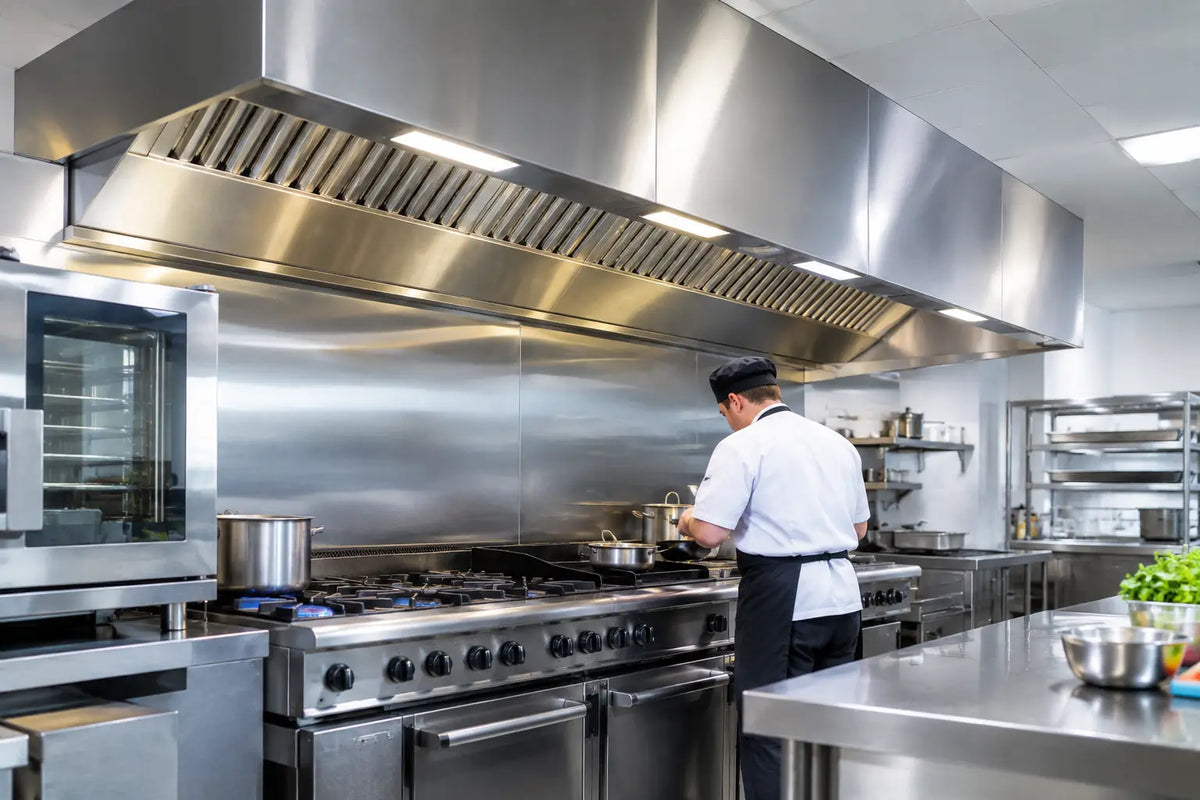

Industrial canopies form the capture point of a local extraction system. In a commercial kitchen, they collect heat, steam, grease-laden vapour and cooking fumes above the equipment. In a workshop or factory, a canopy may be positioned over a process that releases airborne contaminants, provided the process and capture arrangement are properly assessed.
The aim is to contain pollutants close to their source before they spread through the room. Once fumes or heat have moved across a large open area, extraction becomes less efficient and workers, equipment and adjacent spaces are affected. This is why canopy geometry matters as much as the fan at the end of the duct run.
A suitable installation usually combines the canopy, filters where required, ductwork, an extraction fan, controls and an appropriate external discharge arrangement. Each part has an effect on the next. A large canopy connected to undersized ductwork will not perform as intended, while a correctly sized fan cannot fully compensate for a canopy that does not cover the source.
Start with the process, not the canopy size
The equipment beneath the canopy determines the specification. A light-duty cooking line does not create the same extraction demand as chargrilling, frying or high-heat cooking. Similarly, different industrial processes release different types and volumes of airborne material. The canopy should be selected around the operation, not around the nearest standard dimension.
Measure the full footprint of the equipment and allow for suitable canopy coverage beyond the source. This is particularly important where doors open, staff pass frequently, or cross-draughts are present. Air movement can pull contaminated air away from the canopy before it is captured.
Height also needs consideration. A canopy fitted too high has a larger capture area to manage and can allow fumes to escape at the edges. Fit it too low and it can obstruct access, maintenance or safe working. There is no single mounting height that suits every site. Equipment type, ceiling level, operator access and airflow requirements all need to be considered together.
For a busy kitchen, establish whether the canopy must cover one appliance, a complete cooking suite or separate cooking zones. For workshop and factory use, consider whether a hood or canopy is genuinely the appropriate capture method. Some processes may need more enclosed local extraction than an open canopy can provide. Getting that decision right at the planning stage is far easier than retrofitting controls later.
Standard sizes versus made-to-measure fabrication
Standard industrial canopies are often the sensible choice where equipment layouts are straightforward and a commonly available size provides the necessary coverage. They can simplify ordering and keep a project moving when an installer needs a known, repeatable specification.
Custom fabrication is worth considering where walls are out of square, ceiling services restrict the available space, equipment is arranged around corners, or a specific duct connection position is needed. It also helps where a project requires non-standard depth, length, height or end panels. A canopy that fits the room and equipment properly can reduce awkward infill work on site and improve the final capture area.
The trade-off is clear. Standard products are generally quicker to specify and more cost-effective, while bespoke work involves confirmation of drawings, dimensions and fabrication details before manufacture. Neither route is automatically better. The right one depends on whether the standard product genuinely fits the application without compromise.
CanopyMan manufactures canopies in Birmingham, allowing customers across England and Wales to source standard products or discuss made-to-measure stainless steel fabrication with the team building the item. This is useful when a project needs a revised size, a different material grade or a detail that an off-the-shelf canopy cannot accommodate.
Choosing the right stainless steel grade
Material selection is not a cosmetic decision. It affects cost, durability, cleaning and suitability for the environment. Standard canopies are commonly supplied in 430-grade stainless steel at 0.7 mm thickness. For many commercial applications, this provides a practical and cost-conscious finish.
Where the environment is more demanding, 304-grade stainless steel may be the better choice. It offers greater corrosion resistance and is often specified where long-term exposure, cleaning regimes or site conditions call for it. A higher grade comes at a higher material cost, so it should be selected for a reason rather than assumed to be necessary for every installation.
Thickness can also be adjusted for bespoke work. A heavier specification may be appropriate where a project calls for additional rigidity or particular fabrication requirements. Again, more material is not automatically a better outcome if it does not solve a real site need. The useful question is whether the chosen grade and thickness match the operating environment, budget and expected service life.
Build quality is equally important. Clean joints, properly formed edges and reliable welding make a difference to installation, cleaning and appearance over time. In-house laser welding with 316-grade filler wire and fabrication on a 100-tonne press brake provide consistent manufacture rather than relying on loosely matched bought-in parts.
Ductwork and fan selection cannot be treated separately
A canopy is the visible part of the system, but ductwork and fan selection determine whether extracted air reaches its destination efficiently. The duct route should be planned to avoid unnecessary length, sharp changes of direction and poorly considered reductions. Every bend, fitting and restriction adds resistance to airflow.
For that reason, duct diameter, fittings, access for cleaning and the position of silencers should be considered before the canopy is fixed in place. Spiral duct, elbows, spigots, branches and external terminals all need to suit the design rather than being selected solely by what is available at the time of installation.
The extraction fan must be selected against the actual system resistance, not just the canopy size. A longer route with several bends requires different consideration from a short, direct run. Speed controllers can provide useful adjustment where operational demand changes, but they are not a substitute for correct initial sizing. Fans and controllers should also be compatible with the application and fitted in a way that allows sensible maintenance access.
For kitchen projects, grease management needs to be designed into the full system. Filters must be accessible for routine cleaning, and the duct arrangement must support the required maintenance regime. For ductwork, DW144 provides the relevant benchmark for manufacture and installation standards, while DW172 is central to commercial kitchen ventilation design. Compliance is not achieved by adding a label to a canopy. It depends on the complete installation, from capture through to discharge.
Details that make installation and maintenance easier
A well-specified canopy should not create unnecessary work after handover. Confirm the duct connection size and location before manufacture, especially where services above the ceiling are already fixed. Check whether the canopy needs wall fixing, suspension points, end panels or a particular arrangement around adjacent cladding.
Think about cleaning from the outset. Smooth stainless steel surfaces, accessible filters and a duct route that can be inspected and maintained are practical requirements, not optional extras. In commercial kitchens, routine grease removal is essential for hygiene, system performance and fire risk management. In industrial settings, the cleaning approach must suit the material being extracted.
It is also worth considering future changes. A site that expects to add appliances or alter a production process may benefit from leaving room for duct modifications or choosing an arrangement that can be extended. This does not mean over-specifying every component. It means avoiding a layout that leaves no sensible route for later work.
Get the specification confirmed before fabrication
The strongest canopy projects begin with clear information: equipment layout, dimensions, ceiling height, process type, proposed duct route and any material requirement. Photographs and a simple plan are often enough to identify issues early, particularly around wall obstructions, beams and existing services.
A practical supplier should be able to explain what is standard, what needs to be made to order and where a proposed specification may create problems. That is more valuable than a quick quote based only on overall length.
When industrial canopies are sized around the real process and supported by properly selected ductwork and extraction equipment, they become a dependable part of the working environment. The useful next step is to review the equipment layout before ordering, while changes are still straightforward to make.
