S&P TCBBX2 Contra Rotating Cased Axial – Single Phase – IP65 – Soler & Palau

S&P TCBTx2 High-Efficiency Contra-Rotating Cased Axial Fans

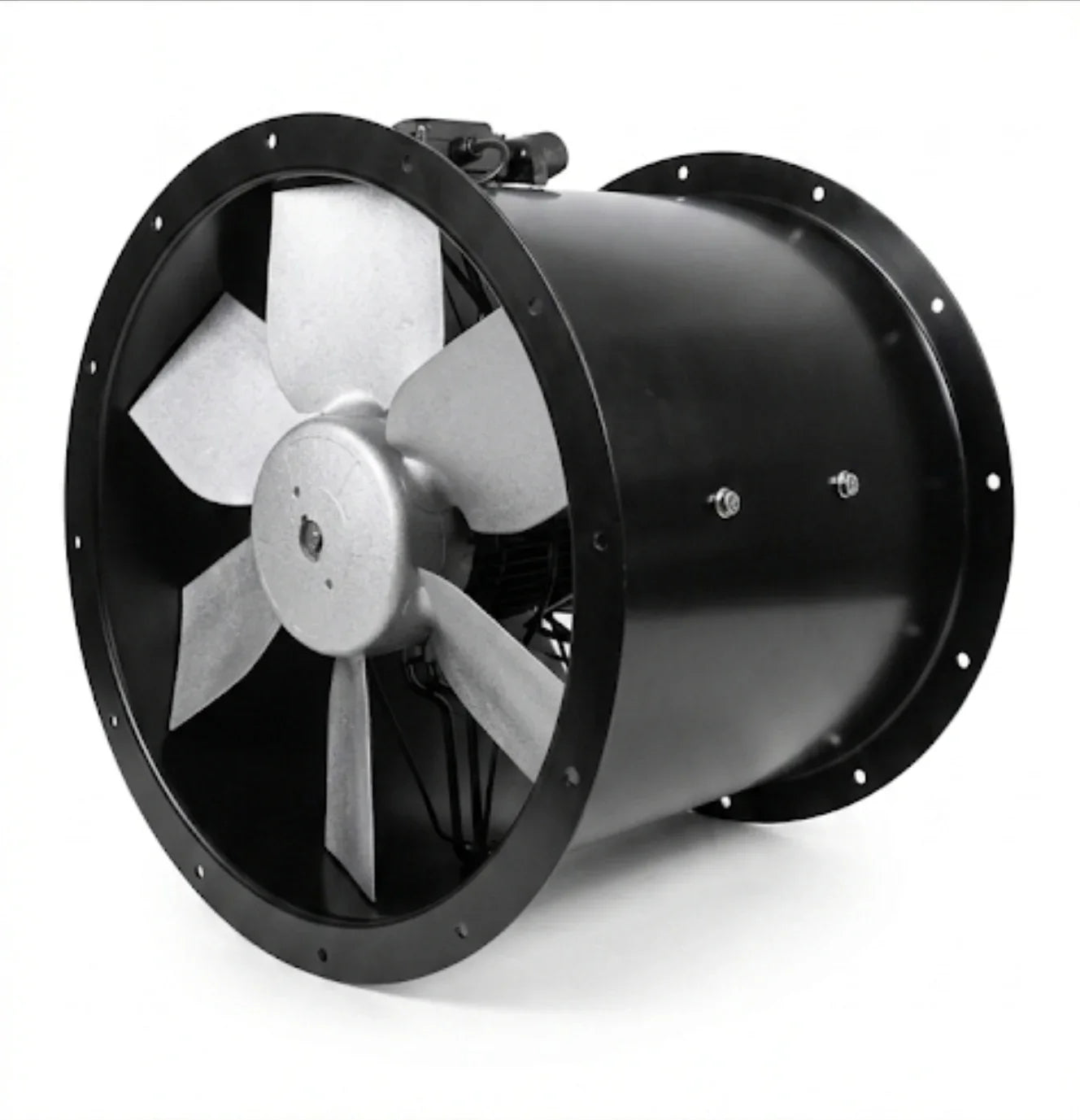

The TCBBx2 contra-rotating cylindrical axial fan by Soler & Palau features two complementary aluminium impellers rotating in opposite directions to significantly increase static pressure and overall efficiency. This range was formerly distributed in the UK by Vent Axia as the "Turboprop" series and remains one of the best-performing high-pressure fans in its class.

Technical Specifications

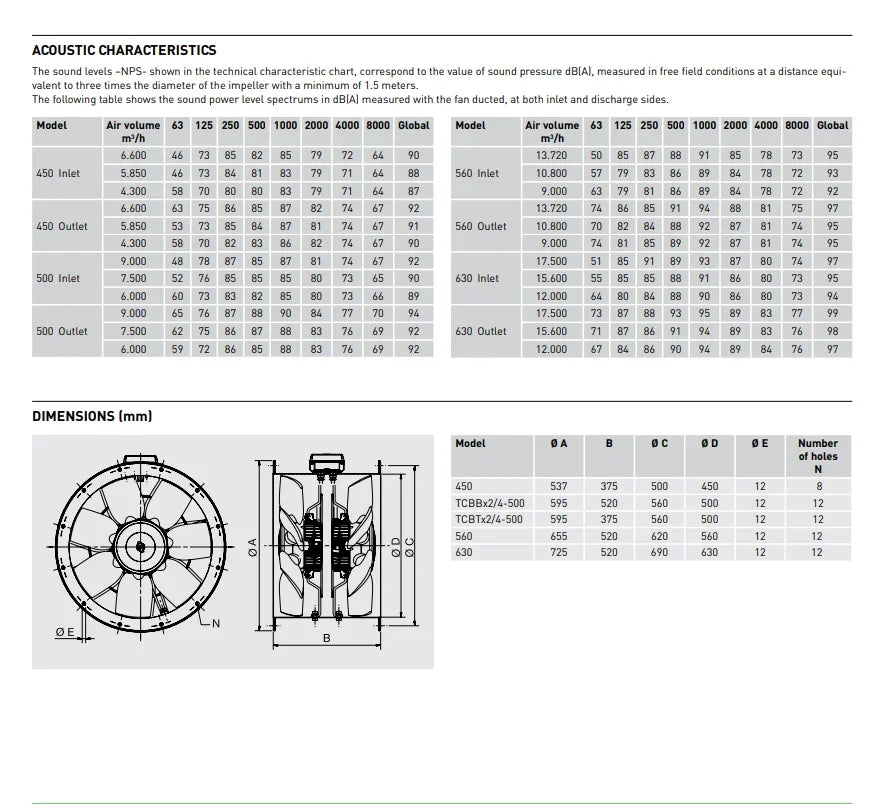

• Fan diameter: 450mm, 500mm, 560mm, 630mm

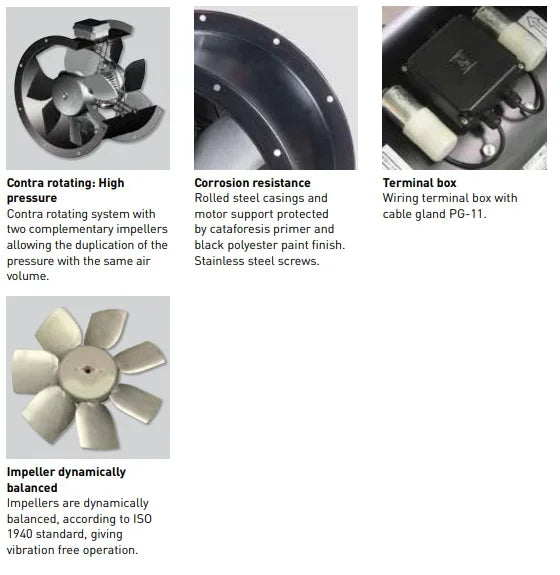

• Design: Two contra-rotating die-cast aluminium impellers, dynamically balanced to ISO 1940 for vibration-free operation
• Casing: Galvanised steel with anti-corrosion cataforesis primer and black polyester paint finish, stainless steel fixings
• Protection rating: IP65
• Insulation class: Class F, with thermal overload protection
• Continuous airstream temperature: -40°C to +70°C
• Electrical supply: Single phase, 220-240V, 50Hz
• Indicative performance: the 500mm size delivers up to approximately 6,380 m³/h at around 500 Pa static pressure (1394 rpm)

Because absorbed power, noise level, and weight vary between motor sub-variants (H/L configurations), contact us with your required diameter and we'll confirm the exact performance curve for your specific model.

Typical Applications

• High-pressure commercial kitchen extract where standard axial fans would stall
• Long or complex duct runs with significant system resistance
• Greasy extraction applications requiring higher static pressure
