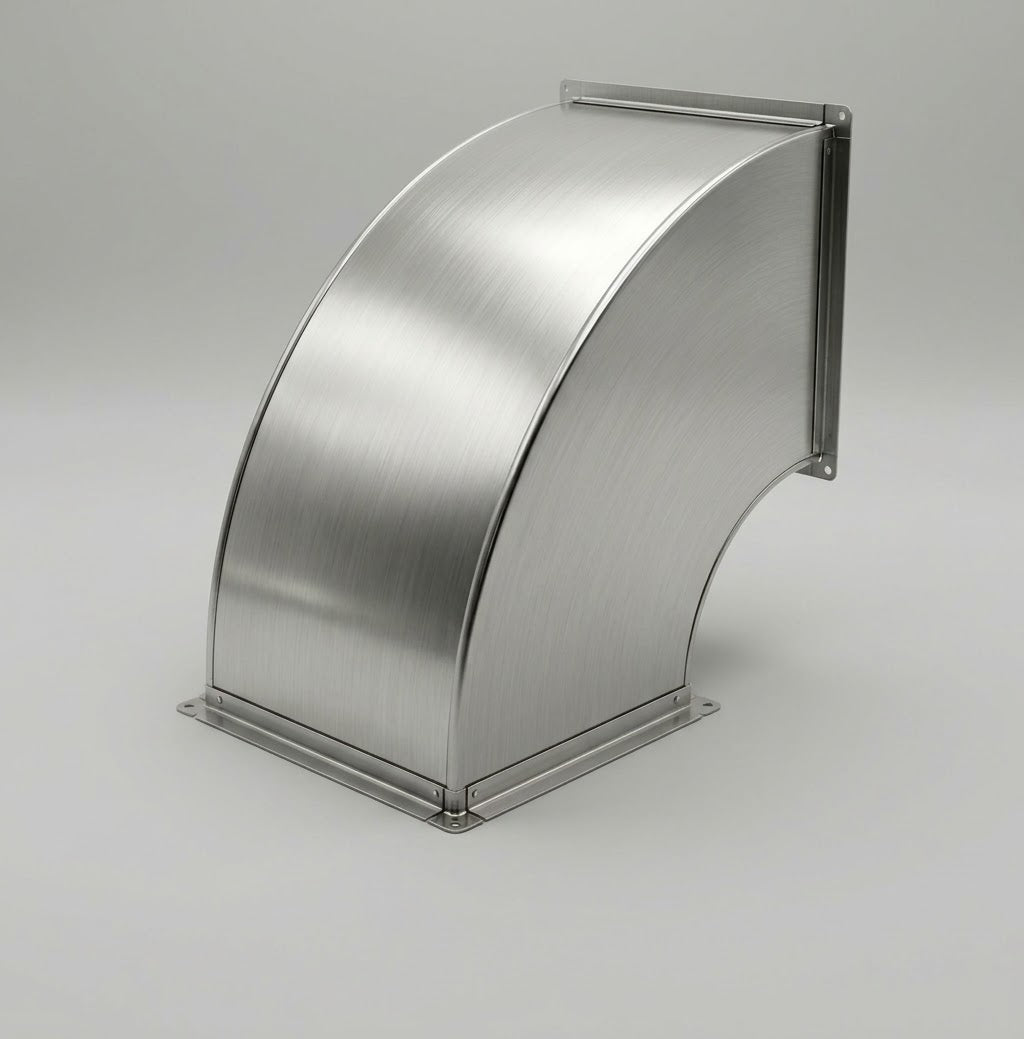

90-Degree Rectangular Duct Elbow – Galvanised Steel, Made to DW144
Our 90-degree rectangular duct elbow (also called a square duct bend) turns rectangular or square ductwork through a right angle while keeping airflow smooth and pressure loss low. It is fabricated in our Birmingham workshop from galvanised steel, in accordance with DW144 – the UK specification for sheet metal ductwork – so it fits straight into professional commercial kitchen and industrial extraction systems.
Sizes & Prices
- 30 x 30 cm – £75
- 15 x 60 cm – £80
- 40 x 40 cm – £85
- 30 x 60 cm – £95
- Custom size – £120
Custom-Sized Duct Bends
Because we manufacture in-house, we can make the elbow to match your existing ductwork exactly. Select Custom size and write the width and height you need in the order note at checkout, or contact us before ordering and we will confirm the details.
Specifications
- Material: Galvanised steel
- Standard: Manufactured in accordance with DW144
- Angle: 90 degrees
- Approx. weight: 10–20 kg depending on size
- Manufacturing time: 4 working days (made to order)
Delivery
Delivered across England and Wales for a flat £60 per order, typically within 7–9 working days including manufacturing.
Complete Your Duct Run
- 45-degree rectangular duct elbows for gentler offsets
- Rectangular (square) ducting by the metre
- Square-to-round transitions to connect to round fans and spiral pipe
- Threaded rod and cantilever brackets to support the ductwork
FAQ
Can you make a size that isn't listed?
Yes – choose Custom size and give us your dimensions. Every elbow is made to order in Birmingham.
Is it suitable for commercial kitchen extraction?
Yes. It is galvanised steel ductwork made to DW144, the standard used for UK commercial kitchen and industrial ventilation.
