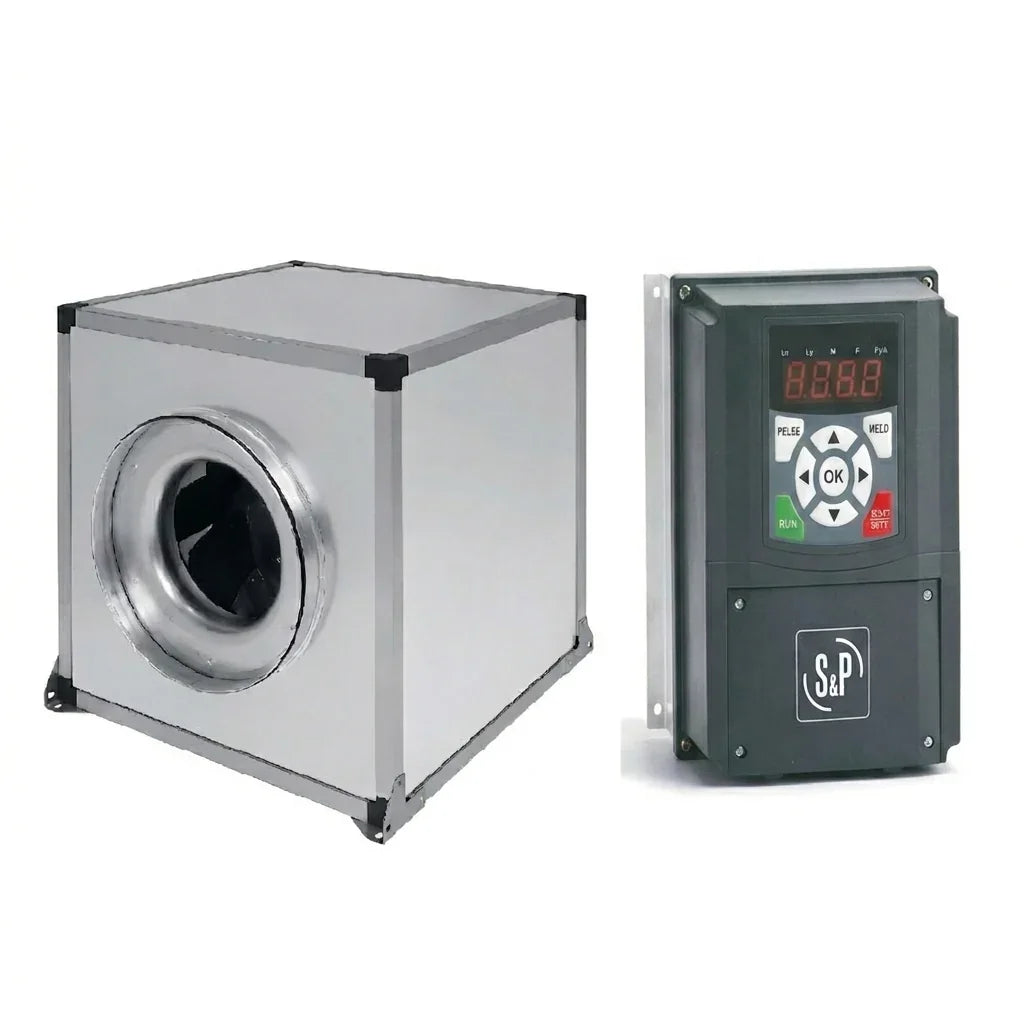

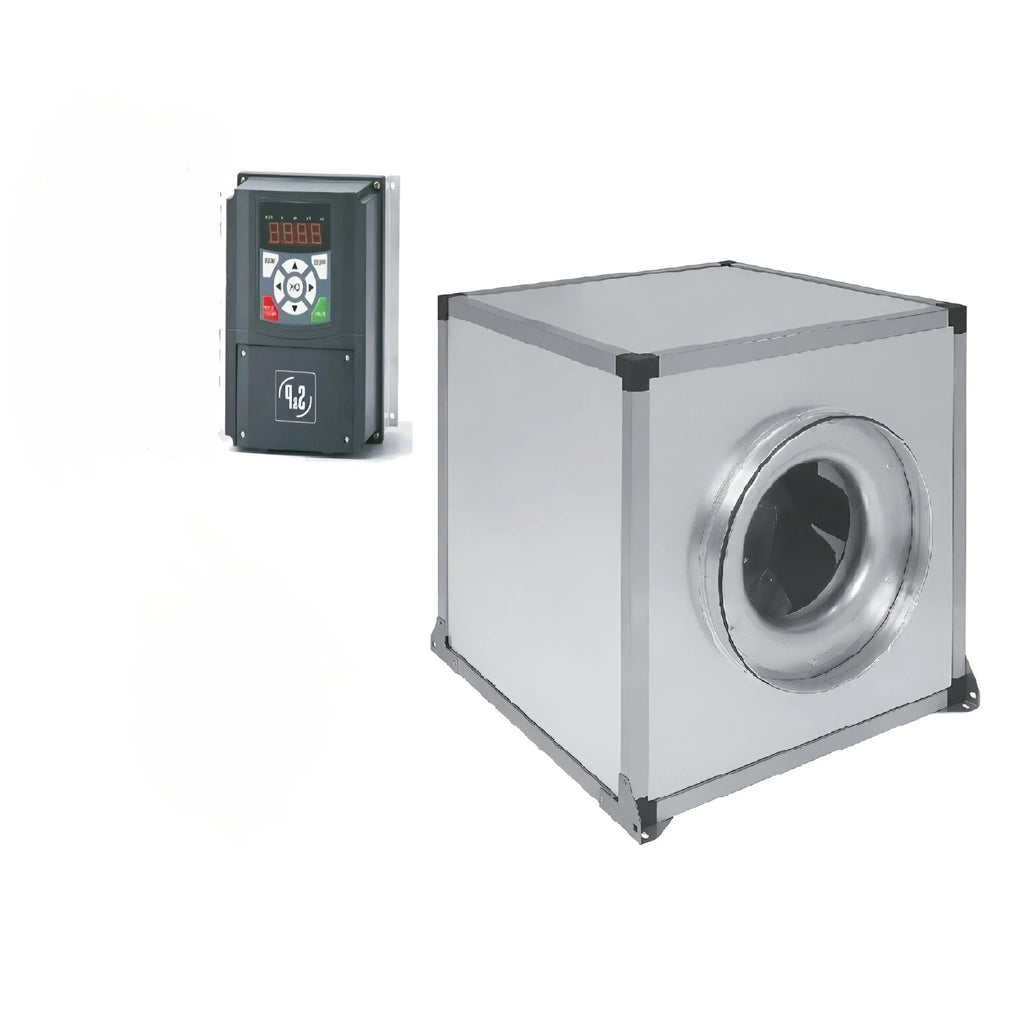

S&P CVAT Acoustic Cabinet Box Fan + Inverter – Three Phase (400–630mm)
S&P CVAT Acoustic Cabinet Box Fan + Inverter – Three Phase (400–630mm)
CVAT-N Series: High-Performance Centrifugal Cabinet Fans
Supplied with an inverter (VFD) for speed control.
Designed specifically for demanding commercial kitchen ventilation and industrial applications, the CVAT-N series offers superior durability and efficient airflow management. These three-phase, direct-drive centrifugal fans feature backward-curved impellers, engineered for high-performance extraction and consistent reliability in professional environments.
Technical Specifications by Size
- 400mm (CVAT/4-400): up to approx. 4,500 m³/h, 1410 rpm, 0.56kW absorbed power, approx. 44kg
- 450mm (6000 class): up to approx. 5,600-6,000 m³/h, 0.75kW absorbed power, approx. 45 dB(A), approx. 46kg
- 500mm (9000 class): up to approx. 9,000 m³/h, 1.1kW absorbed power
- 560mm (12000 class): up to approx. 12,000 m³/h, 2.2kW absorbed power
- 630mm (16000 class): up to approx. 16,000 m³/h, 3kW absorbed power
Key Design & Structural Features
Robust Cabinet Construction: Built with premium-grade aluminum profiles and double-thickness side panels for exceptional structural integrity.
Advanced Acoustic Insulation: Equipped with 25mm thick fireproof fiberglass lining, ensuring quiet operation and enhanced thermal efficiency.
Easy Installation: Integrated circular flange connections on both the inlet and outlet ensure seamless, hassle-free integration into existing ductwork.
Efficient Airflow: Features a high-strength steel backward-curved impeller, directly coupled to the motor for optimal performance within the airstream.
Electrical & Safety Specifications
- Motor: Three-phase, 4-pole
- Electrical supply: 230/400V, 50Hz
- Protection: IP55 rating with Class F insulation and integrated PTC thermal protection to prevent overheating
- Speed control: Inverter (VFD) included for precision speed regulation
- Operating temperature range: -20°C to +40°C
Exact airflow, noise, and weight figures vary slightly by motor configuration. Contact us with your required model size to confirm the precise performance data before ordering.
